Preliminary Data Sheet

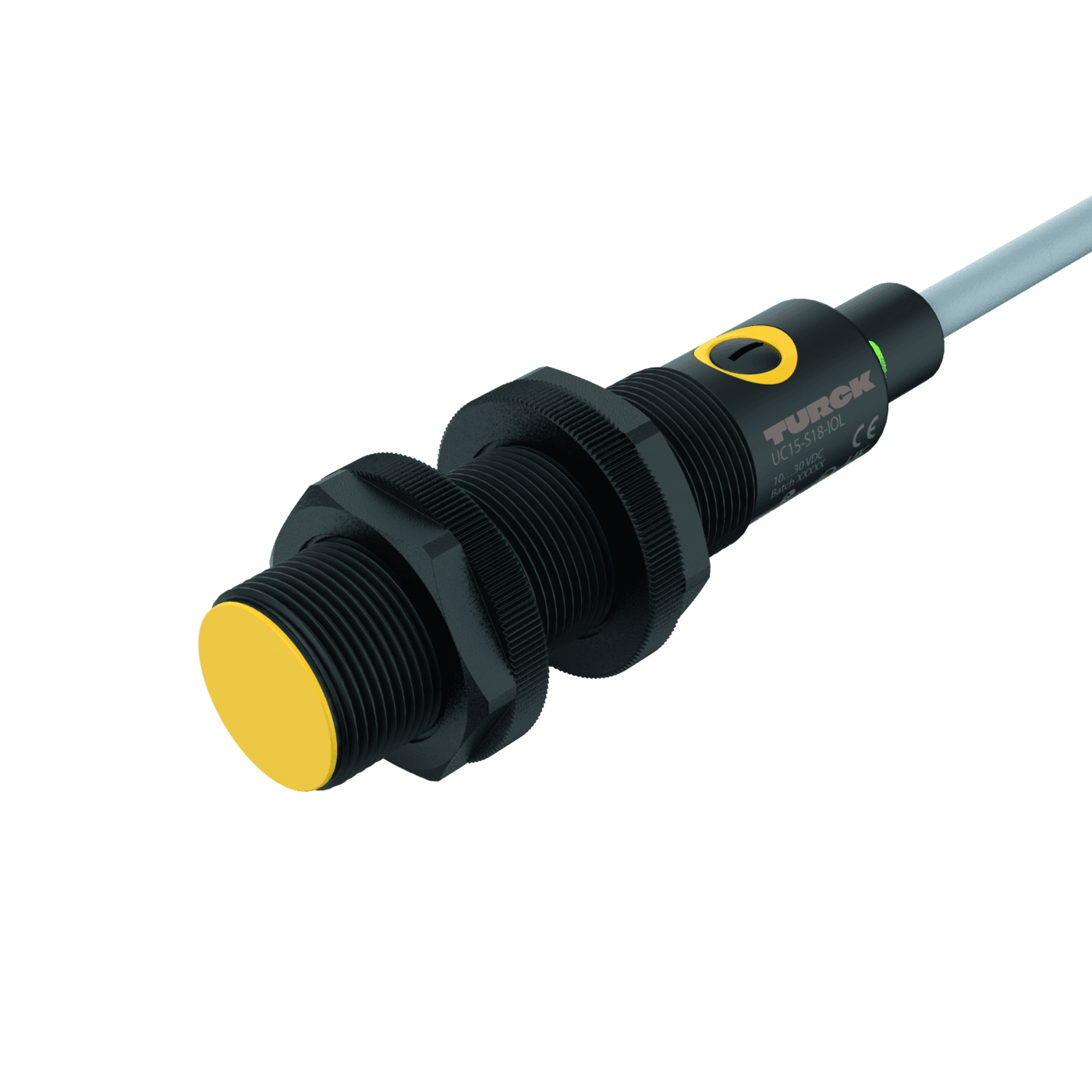

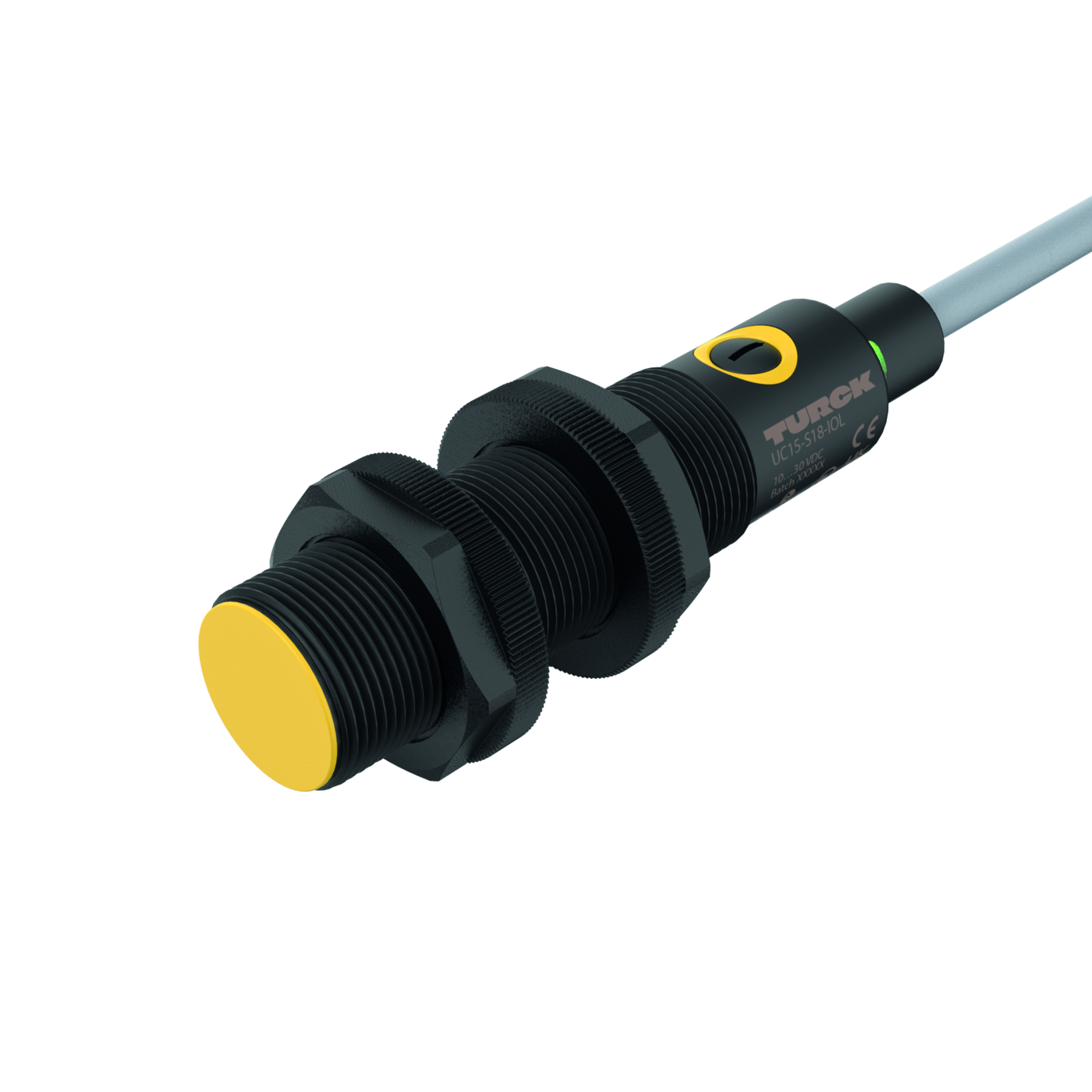

UC15-S18-IOL

Order ID no. 100050168

Base unit: PCE
EAN/UPC code: 4047101670462
Function: Level detection, For dry granules, For highly viscous media, Continuous level measurement
Gross weight: 108
Height: 20
Length: 210
Net weight: 108
Dimension unit: MMT
Weight unit: GRM
Volume: 1.113
Volume unit: DMQ
Width: 265
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -40
Cable length (m): 2
Communication protocol: IO-Link
Electrical connection: Stranded wires
Connector type: Open end
Design: Threaded barrel

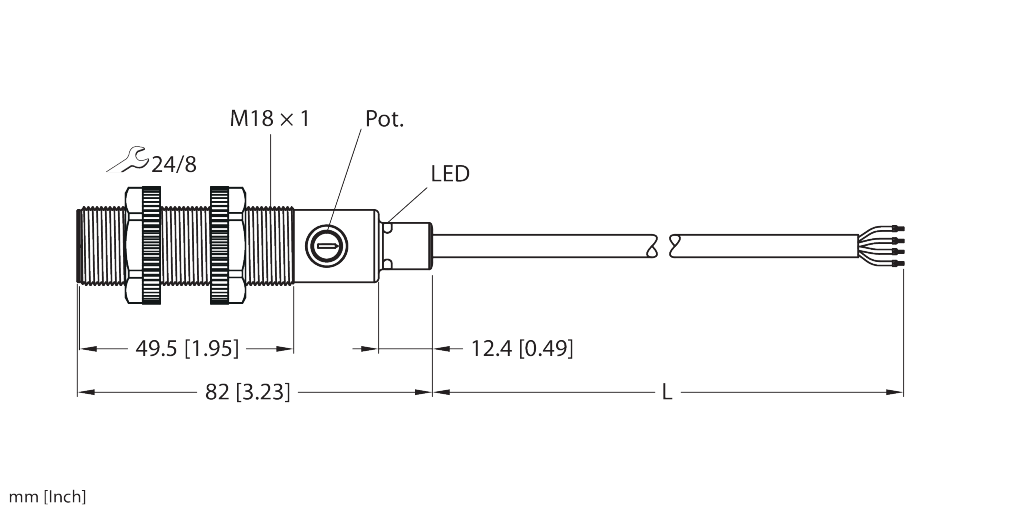

Dimensions: 18 mm x 82 mm
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Medium: Bulk goods, liquids
Media temperature max. (°C): 85
Media temperature min. (°C): -40
Mounting conditions: Flush/Non-flush
Operating voltage: DC
Measuring principle: Capacitive
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO/NC programmable
