Inductive Sensor

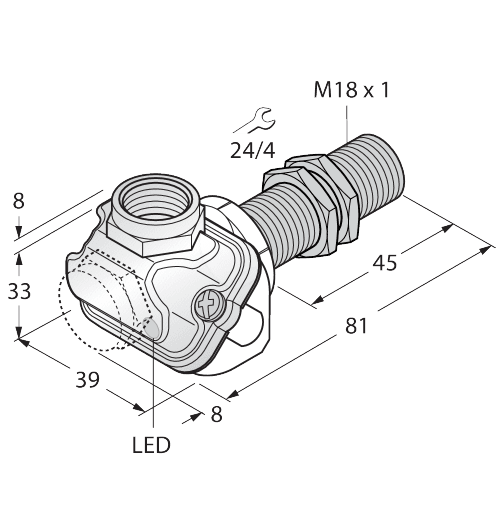

BI5U-EM18WDTC-AP6X

Order ID no. 1581224

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Connector type: Removable cage clamp terminals
Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Terminal chamber
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 5
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: NO contact
Switching frequency (kHz): 1.5
