Inductive Sensor

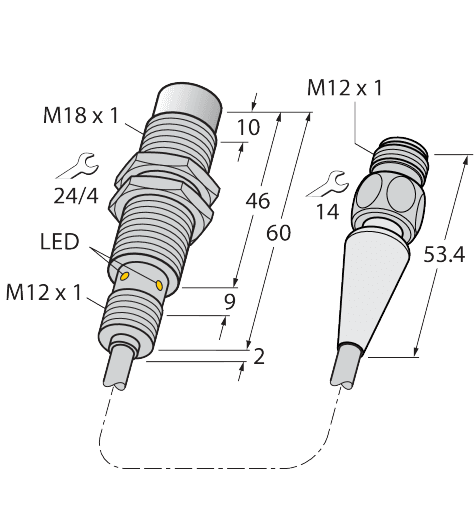

NI15U-EM18MWD-VP6X-0.2-RSV4.4/S1326

Order ID no. 1635009

Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable color: Gray
Cable length (m): 0.2
Electrical connection: Cable with connector
Connector type: M12 x 1
Design: Threaded barrel

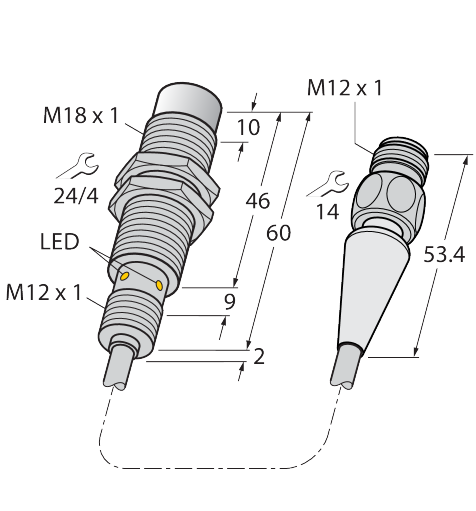

Construction size: ⌀ 18 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: PVDF
Rated switching distance (mm): 15
Switching element function: Complementary contact
Switching frequency (kHz): 1
