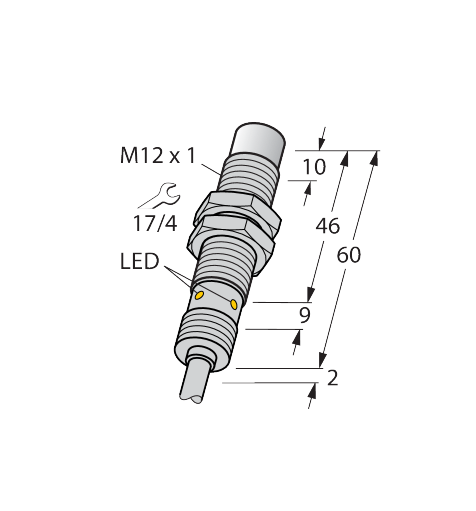

Inductive Sensor

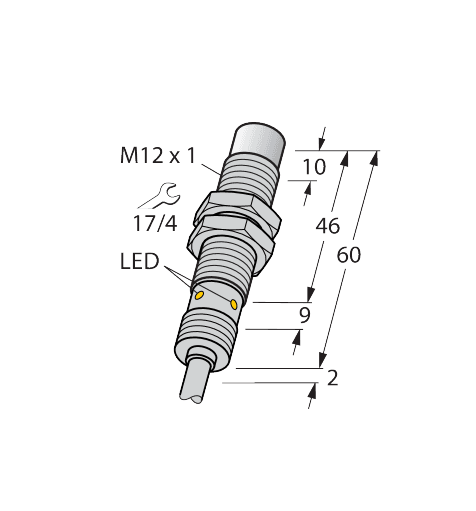

NI8U-EM12EWD-VP6X/3GD 7M

Order ID no. 1635227

Item TotalPLN 630.05

Quantity

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable color: Gray
Cable length (m): 7
Construction size: ⌀ 12 mm
Design: Threaded barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 8
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: Complementary contact
Switching frequency (kHz): 2
