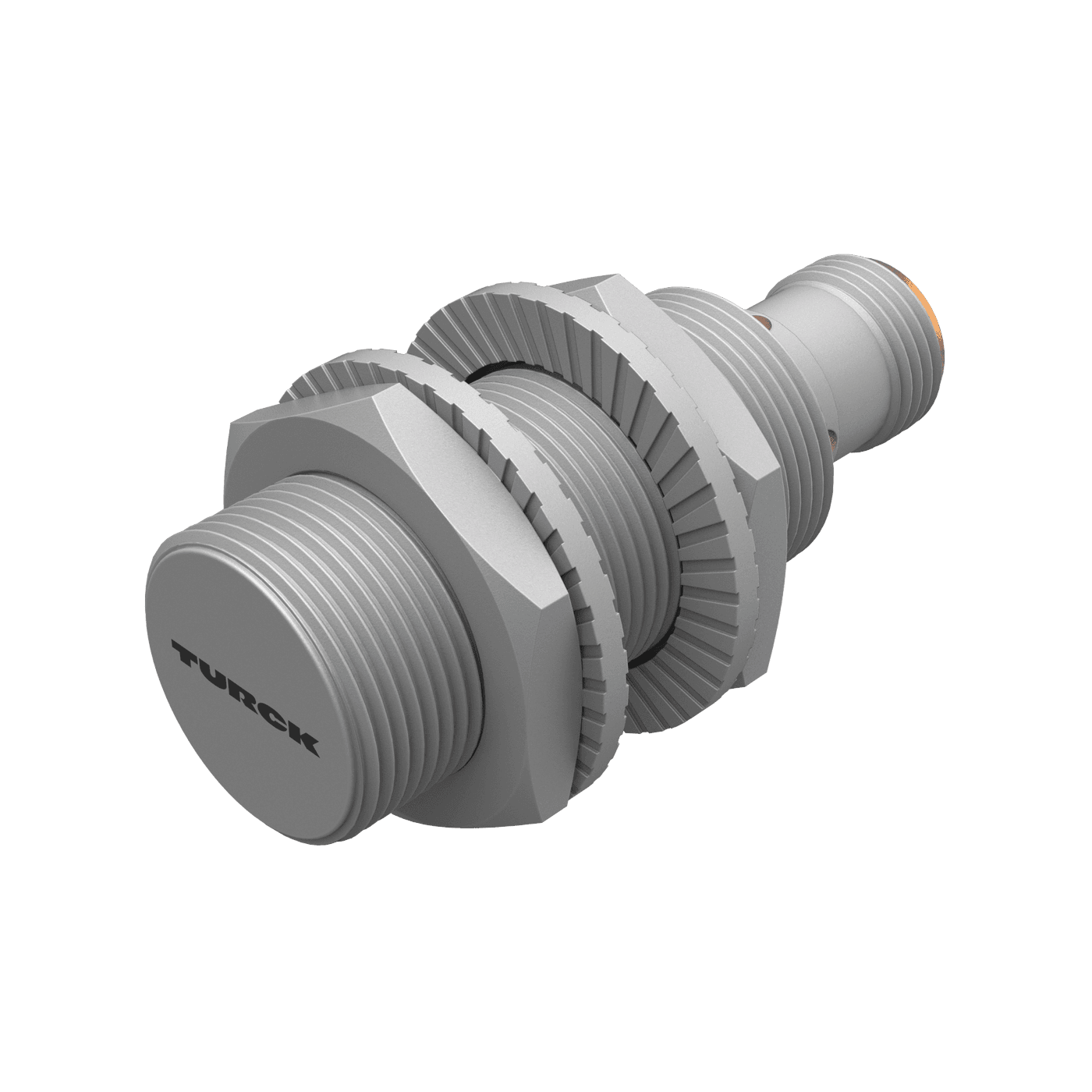

Inductive Sensor

BI5U-MT18-AP6X-H1141/S1589

Order ID no. 1635294

Special features: uprox+, Factor 1, Resistant to magnetic fields, weldguard®, PTFE-coated
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel

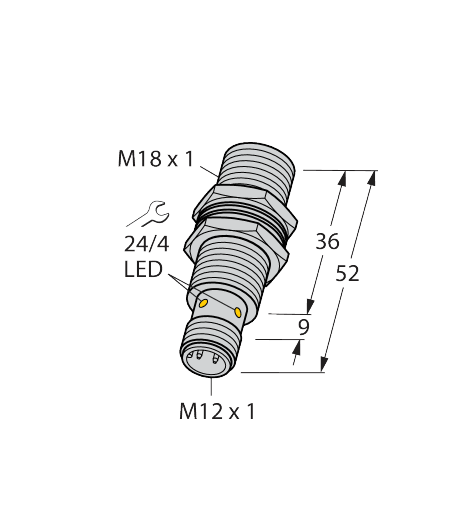

Construction size: ⌀ 18 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68
Quality active face: PBT
Rated switching distance (mm): 5
Switching element function: NO contact
Switching frequency (kHz): 1.5
