Magnetic Field Sensor

BIM-UNT-AN6X2-H1141

Order ID no. 4685759

Item TotalPLN 287.26

Quantity

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Electrical connection: Connector
Connector type: M8 x 1
Design: Rectangular
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

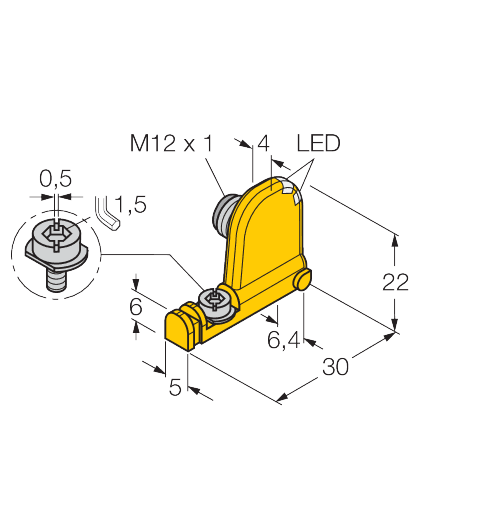

Dimensions: 30 mm x 5 mm x 22 mm
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Protection class: IP67
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 1
