Magnetic Field Sensor

BIM-UNT-AN7X-0.3-PSG3S

Order ID no. 4685861

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.3
Electrical connection: Cable with connector
Connector type: Ø 8 mm
Design: Rectangular
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

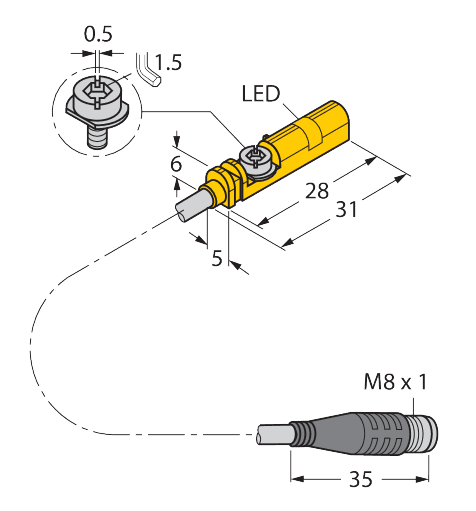

Dimensions: 28 mm x 5 mm x 6 mm
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Protection class: IP68
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 1
