Capacitive Sensor

BCC10-S30WD-AP4X-H1141

Order ID no. 2503052

Special features: EMC and ESD resistant, Especially for the detection of dry pellets, Wash down
Function: For dry granules
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -25
Approvals: UL
Electrical connection: Connector
Connector type: M12 x 1

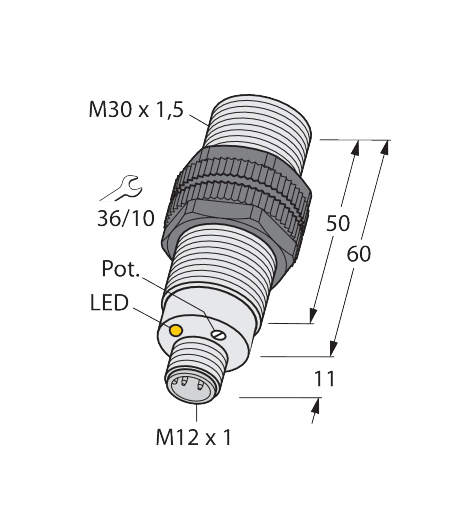

Design: Threaded barrel
Construction size: ⌀ 30 mm
Housing material: Plastic
Housing quality: LCP
Mounting conditions: Flush
Operating voltage: DC
Measuring principle: Capacitive
Protection class: IP69K front, IP67 rear
Quality active face: LCP
Rated switching distance (mm): 10
Switching element function: NO contact
Switching frequency (kHz): 0.1
