BC5-S18-AP4X-H1141/S250 | TURCK - Your Global Automation Partner

BC5-S18-AP4X-H1141/S250

BC5-S18-AP4X-H1141/S250

Thumbnail for BC5-S18-AP4X-H1141/S250

Thumbnail for BC5-S18-AP4X-H1141/S250

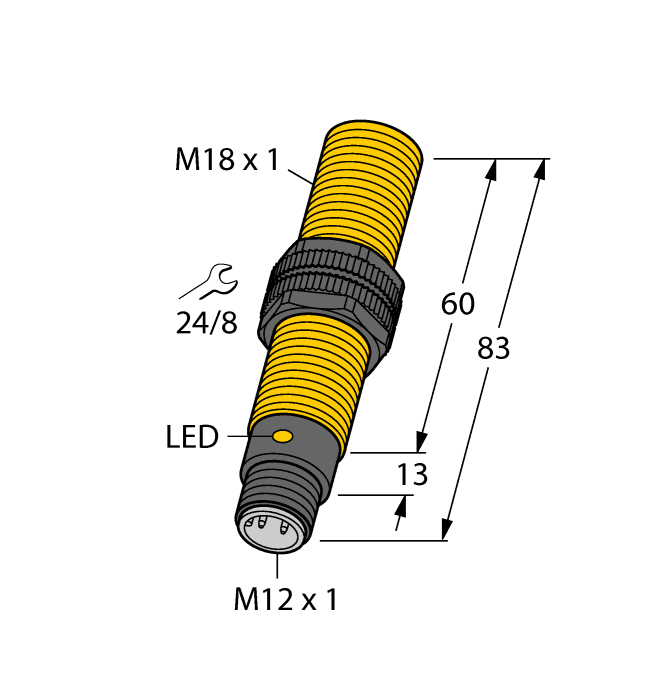

Capacitive Sensor

BC5-S18-AP4X-H1141/S250

Order ID no. 2503602

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: UL
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel
Construction size: ⌀ 18 mm
Dimensions: 83 mm
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Mounting conditions: Flush
Operating voltage: DC
Measuring principle: Capacitive
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 5
Switching element function: NO contact
Switching frequency (kHz): 0.1

Key Features

Electrical connection

Connector

Mounting conditions

Flush

Rated switching distance (mm)

5

In Stock
Price Group	E1
List Price	PLN 799.68
