Home
Products

BC5-Q08-RN6X2-0.85-PSG3S/S90-S250

BC5-Q08-RN6X2-0.85-PSG3S/S90-S250

Thumbnail for BC5-Q08-RN6X2-0.85-PSG3S/S90-S250

Thumbnail for BC5-Q08-RN6X2-0.85-PSG3S/S90-S250

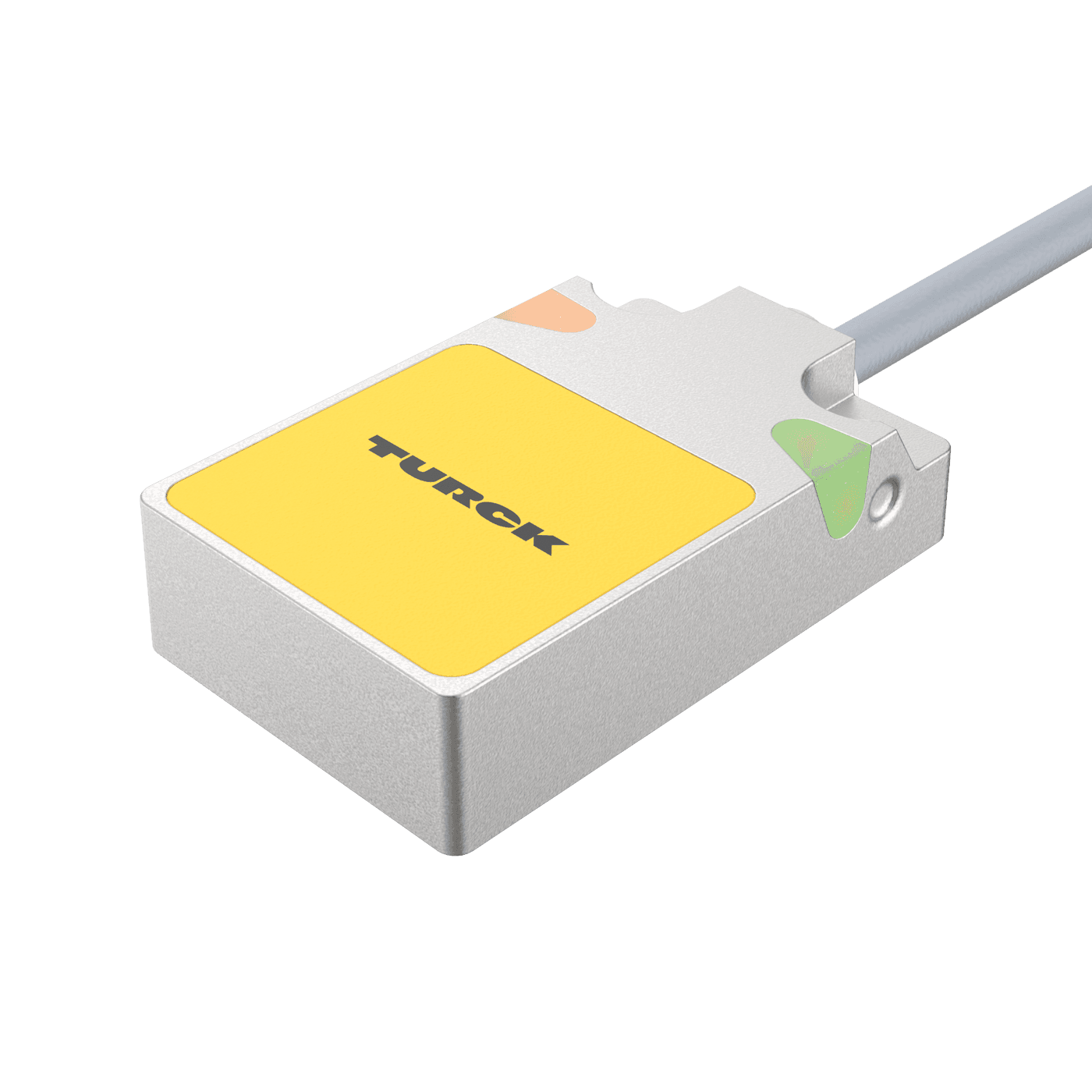

Capacitive Sensor

BC5-Q08-RN6X2-0.85-PSG3S/S90-S250

Order ID no. 2620112

In Stock
Price Group	E1
List Price	PLN 621.98

Item TotalPLN 621.98

Quantity

homeTurck-Shop
Sensors
Capacitive Sensors
BC5-Q08-RN6X2-0.85-PSG3S/S90-S250

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Electrical connection: Cable with connector
Connector type: M8 x 1
Design: Rectangular

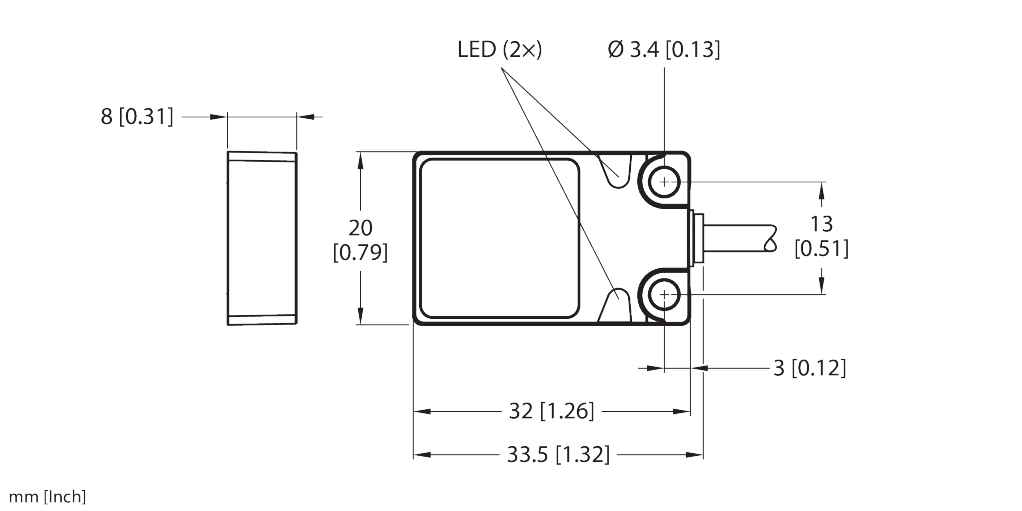

Dimensions: 32 mm
Housing material: Metal
Housing quality: Zamak
Mounting conditions: Flush
Operating voltage: DC
Measuring principle: Capacitive
Protection class: IP68
Quality active face: PP
Rated switching distance (mm): 5
Switching element function: NC contact
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Cable with connector
Mounting conditions: Flush
Rated switching distance (mm): 5
