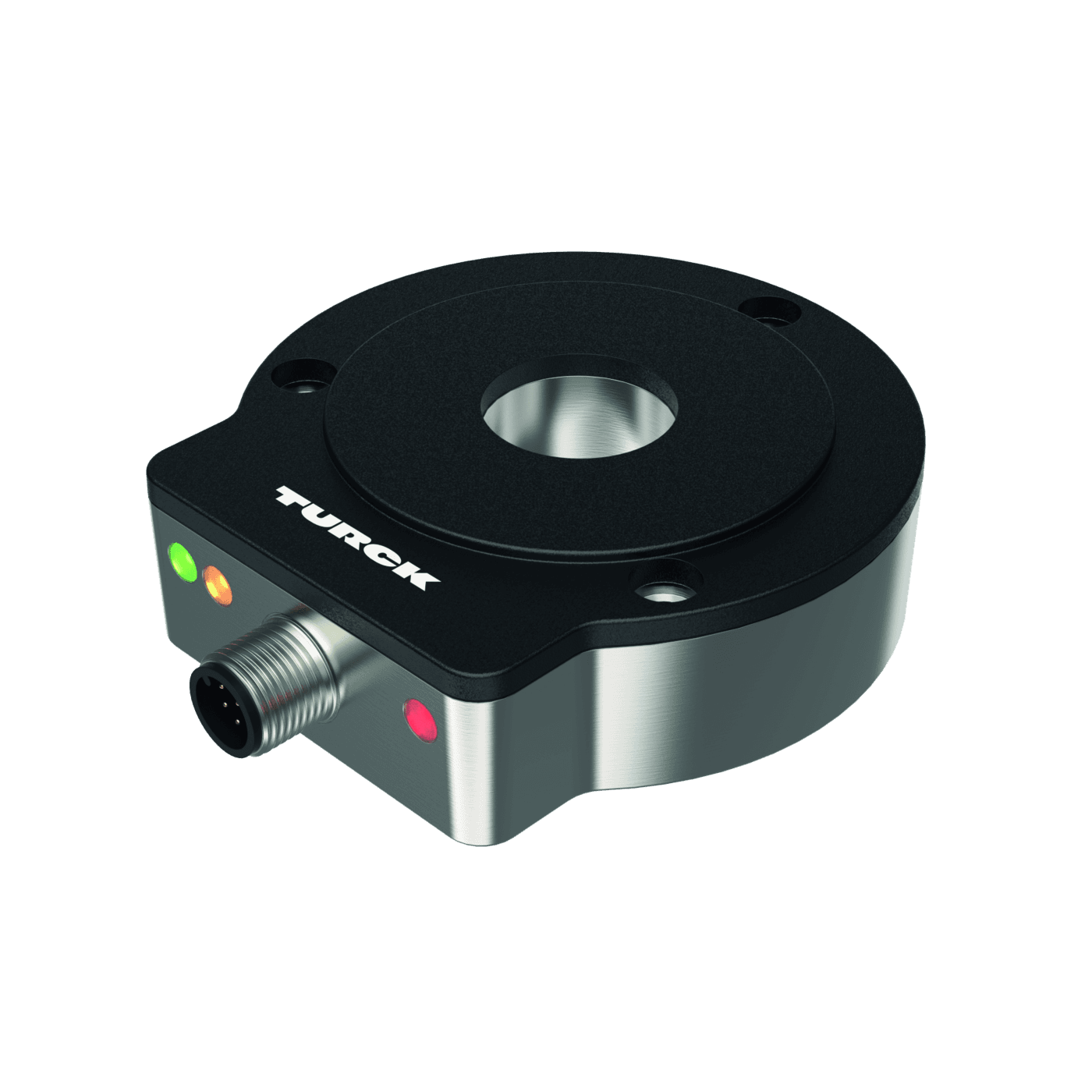

Contactless Encoder with Stainless Steel Housing

RI360P0-EQR24M0-HESG25X3-H1181

Order ID no. 1590911

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -25
Communication protocol: SSi
Connector type: M12 x 1

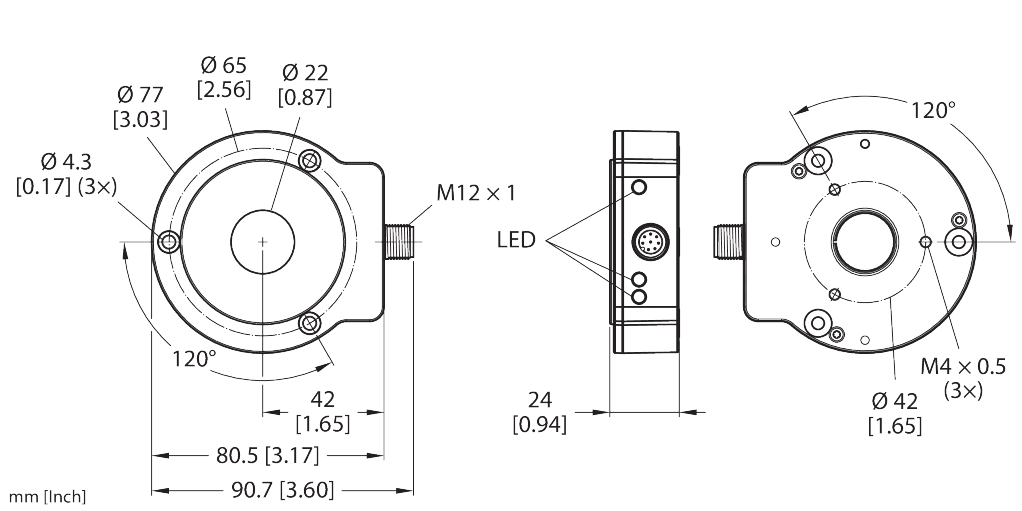

Dimensions: 81 mm x 78 mm x 24 mm
Electrical connection: Connector
Encoder line: Premium-Line
Flange type: Flange without mounting element
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/PA12-GF30
Measuring principle: Inductive
Operating voltage: DC
Output type: Absolute semi-multiturn
Protection class: IP68, IP69K
Shaft diameter D (mm): 6 mm, 6.35 mm, 9.525 mm, 10 mm, 12 mm, 12.7 mm, 14 mm, 15.875 mm, 19.05 mm, 20 mm
Shaft Type: Hollow shaft
Technology: Contactless

Output type: Absolute semi-multiturn
Shaft diameter D (mm): 6 mm, 6.35 mm, 9.525 mm, 10 mm, 12 mm, 12.7 mm, 14 mm, 15.875 mm, 19.05 mm, 20 mm
Shaft Type: Hollow shaft
