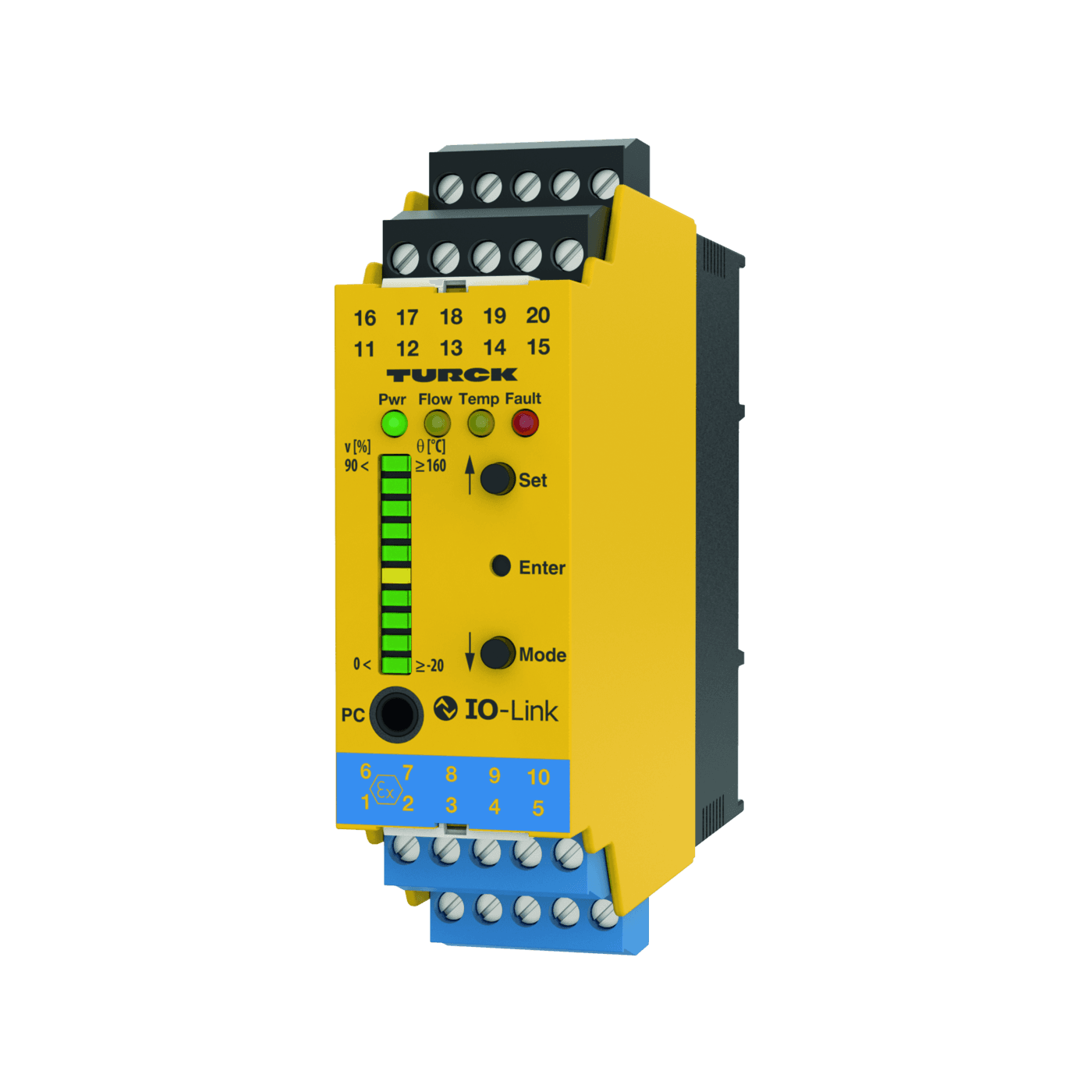

Processor Unit For the Connection of FP Product Series Ex Flow Sensors (NAEX)

FMX-IM-3UR38FX

Order ID no. 100000821

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, IECEx, KOSHA
Communication protocol: IO-Link
Design: Signal processor

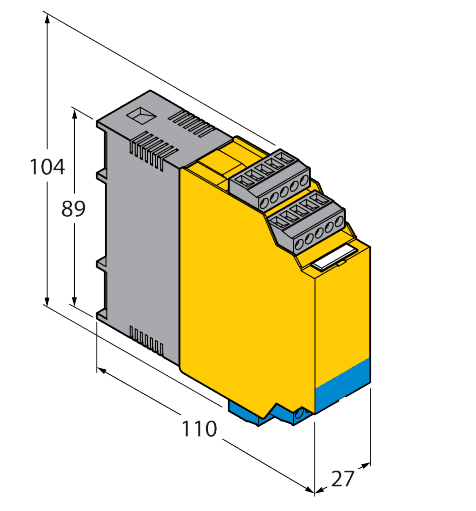

Dimensions: 110 mm x 27 mm x 89 mm
Electrical connection: Terminal block
Function: Flow monitoring
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Operating voltage: AC/DC
Protection class: IP20
Switching element function: NO/NC programmable
