B1NF360V-QR20-CNX4-H1150

B1NF360V-QR20-CNX4-H1150

Thumbnail for B1NF360V-QR20-CNX4-H1150

Thumbnail for B1NF360V-QR20-CNX4-H1150

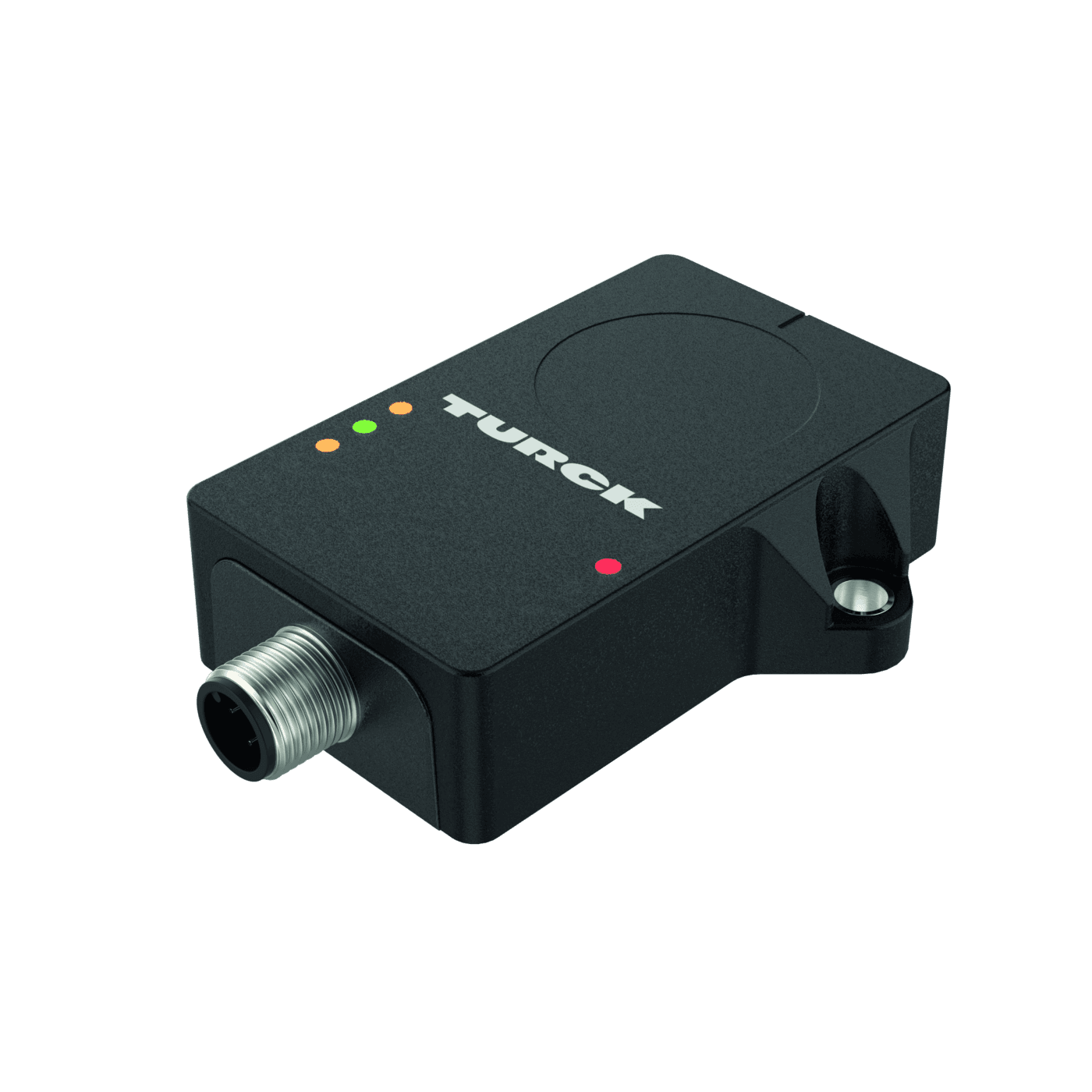

Dynamic Inclinometer

B1NF360V-QR20-CNX4-H1150

Order ID no. 100046442

In Stock
List Price	PLN 1,741.73

Item TotalPLN 1,741.73

Quantity

Contact Support

homeHome
Loading...

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Communication protocol: CANopen
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular

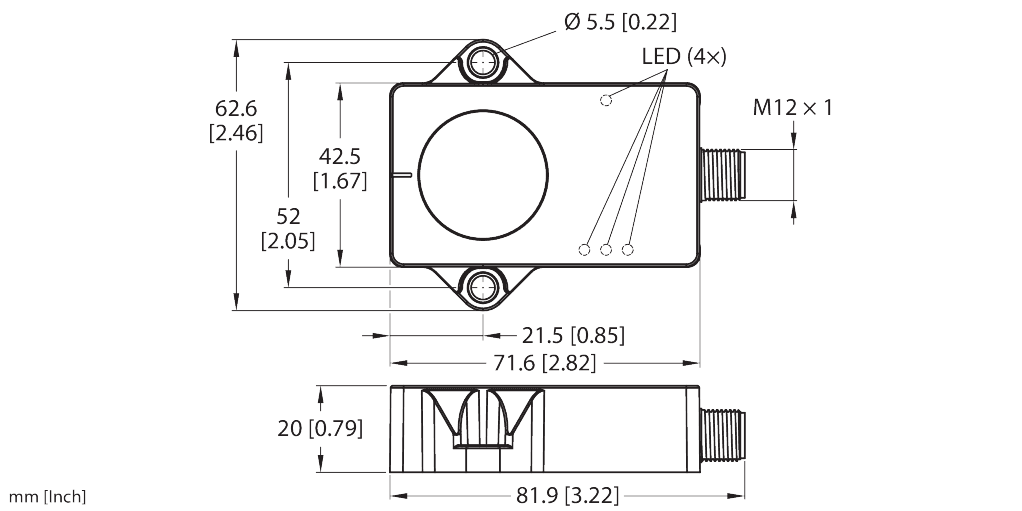

Dimensions: 71,6 mm x 62,6 mm x 20 mm
Housing material: Plastic
Housing quality: Ultem
Number of measuring axes: 1
Measuring principle: Combination of gyroscopes and accelerometers
Protection class: IP68, IP69K

Key Features

Communication protocol: CANopen
Number of measuring axes: 1
