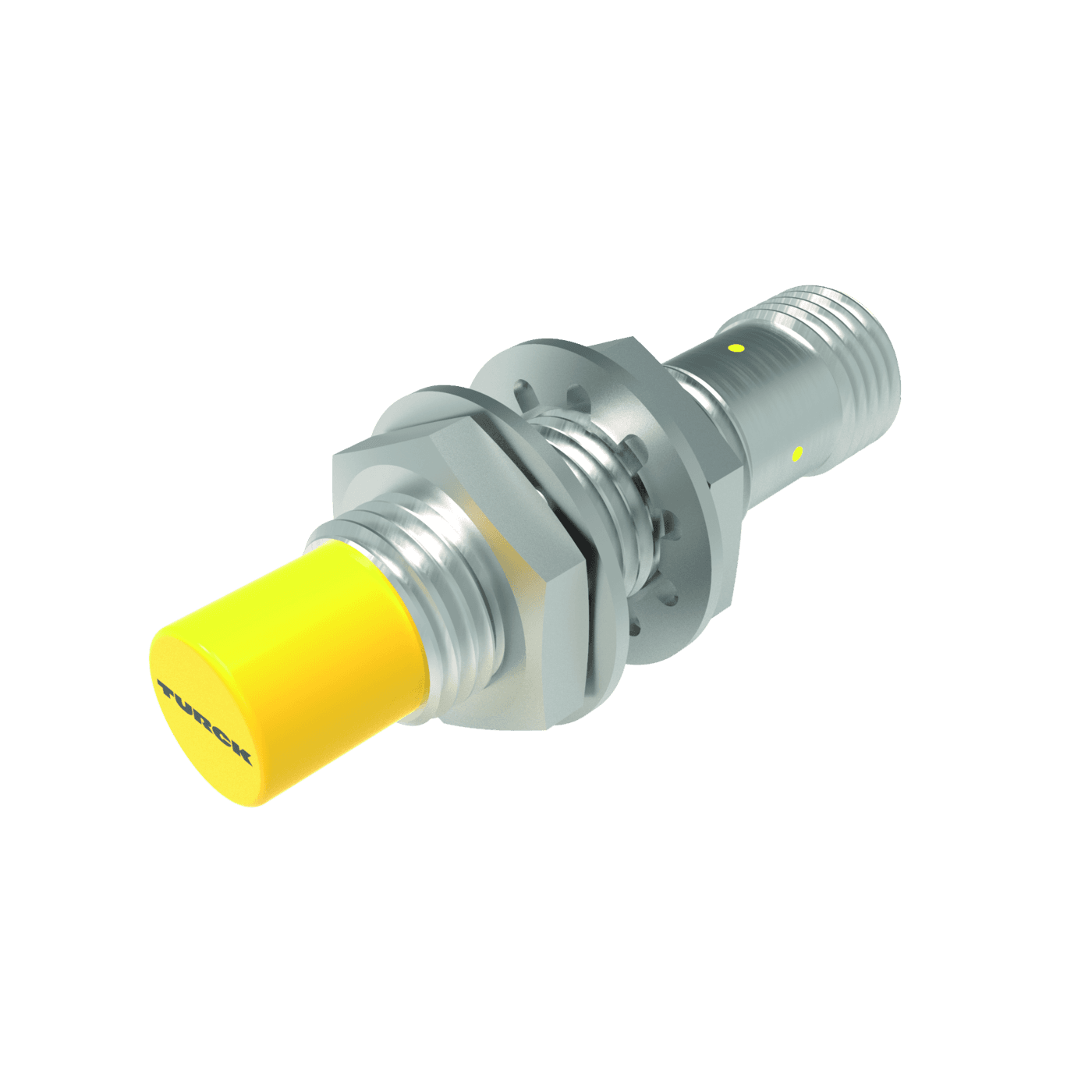

Inductive Sensor
NI10U-M12E-VP6X-H1141
Order ID no. 100000622
In Stock
Price Group
E2
List Price
PLN 412.46
Item Total
PLN 412.46
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Protection class
IP68
Switching element function
Complementary contact
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
10
Construction size
M12 x 1
Output function
Complementary contact, PNP
Base unit
PCE
Special features
uprox+, Factor 1, Resistant to magnetic fields
EAN/UPC code
4047101440904
Gross weight
33
Height
10
Length
100
Net weight
33
Dimension unit
MMT
Weight unit
GRM
Volume
100
Volume unit
CMQ
Width
100

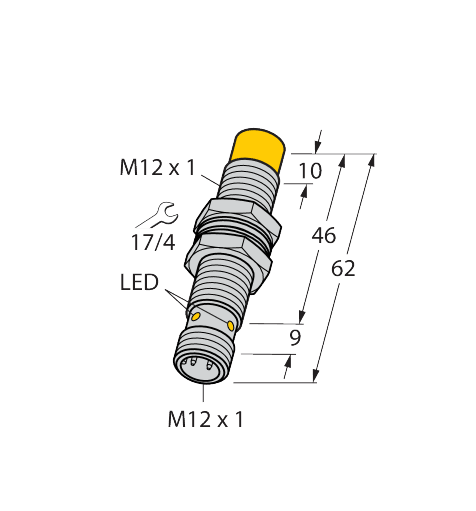

Dimensions
12 mm x 62 mm
Housing surface
Chrome-plated
Quality active face
LCP
Switching frequency (kHz)
1
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Rated switching distance (mm)
10
