BI3-M12-AD6X-0.3-RS4.23 | TURCK - Your Global Automation Partner
Inductive Sensor
BI3-M12-AD6X-0.3-RS4.23
Order ID no. 100000663
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Cable length (m)
0.3
Design
Threaded barrel
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
3
Construction size
M12 x 1
Output function
NO contact, 2-wire
Base unit
PCE
EAN/UPC code
4047101441321
Gross weight
54
Height
20
Length
100
Net weight
54
Dimension unit
MMT
Weight unit
GRM
Volume
200
Volume unit
CMQ
Width
100

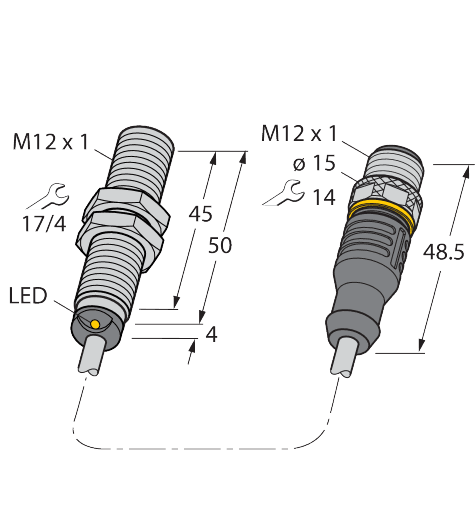

Dimensions
12 mm x 54 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Rated switching distance (mm)
3
In Stock
Price Group
E1
List Price
PLN 201.94
