Inductive Sensor

BI8U-EM18MWD-VP6X

Order ID no. 100000767

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable color: Gray
Cable length (m): 2

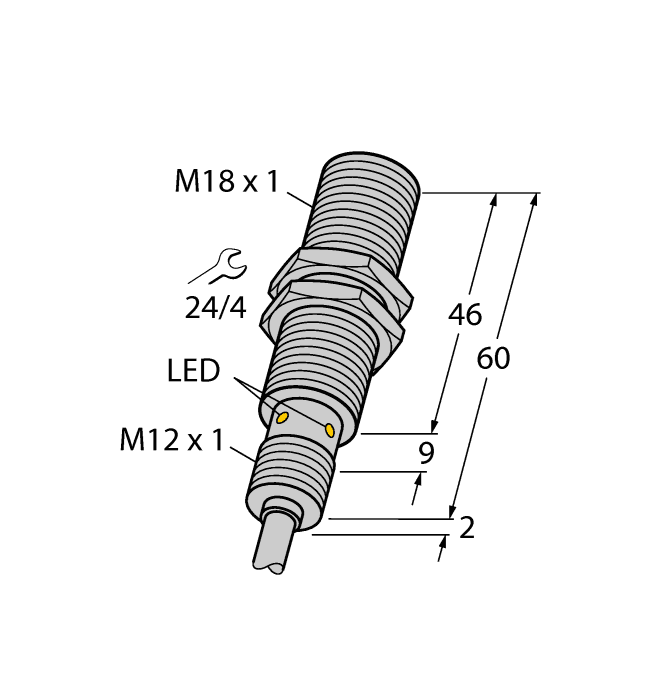

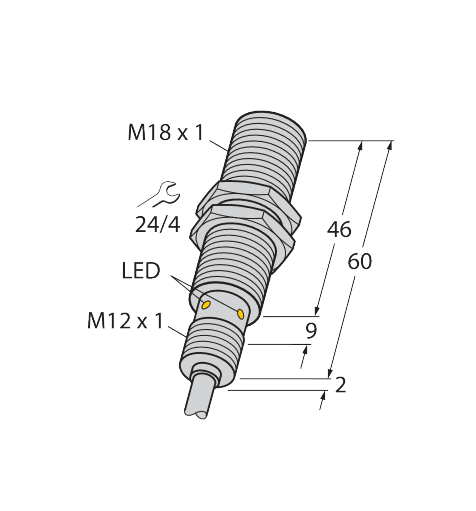

Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 8
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: Complementary contact
Switching frequency (kHz): 1.5
