Inductive Sensor

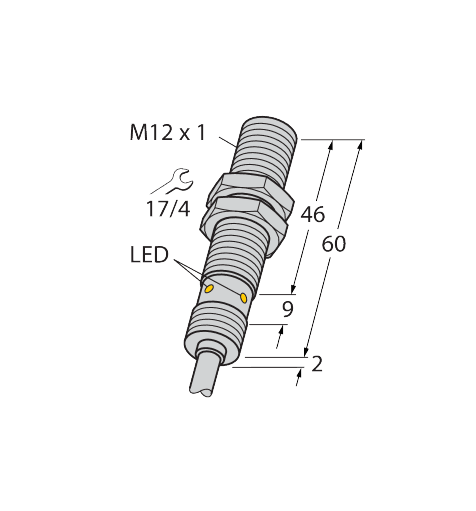

BI4U-EM12EWD-VP6X 12M

Order ID no. 100000771

Item TotalPLN 648.23

Quantity

Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable color: Gray
Cable length (m): 12
Electrical connection: Cable
Design: Threaded barrel
Construction size: ⌀ 12 mm
Housing material: Stainless steel
Housing quality: 1.4301 (AISI 304)
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 4
Switching element function: Complementary contact
Switching frequency (kHz): 3
