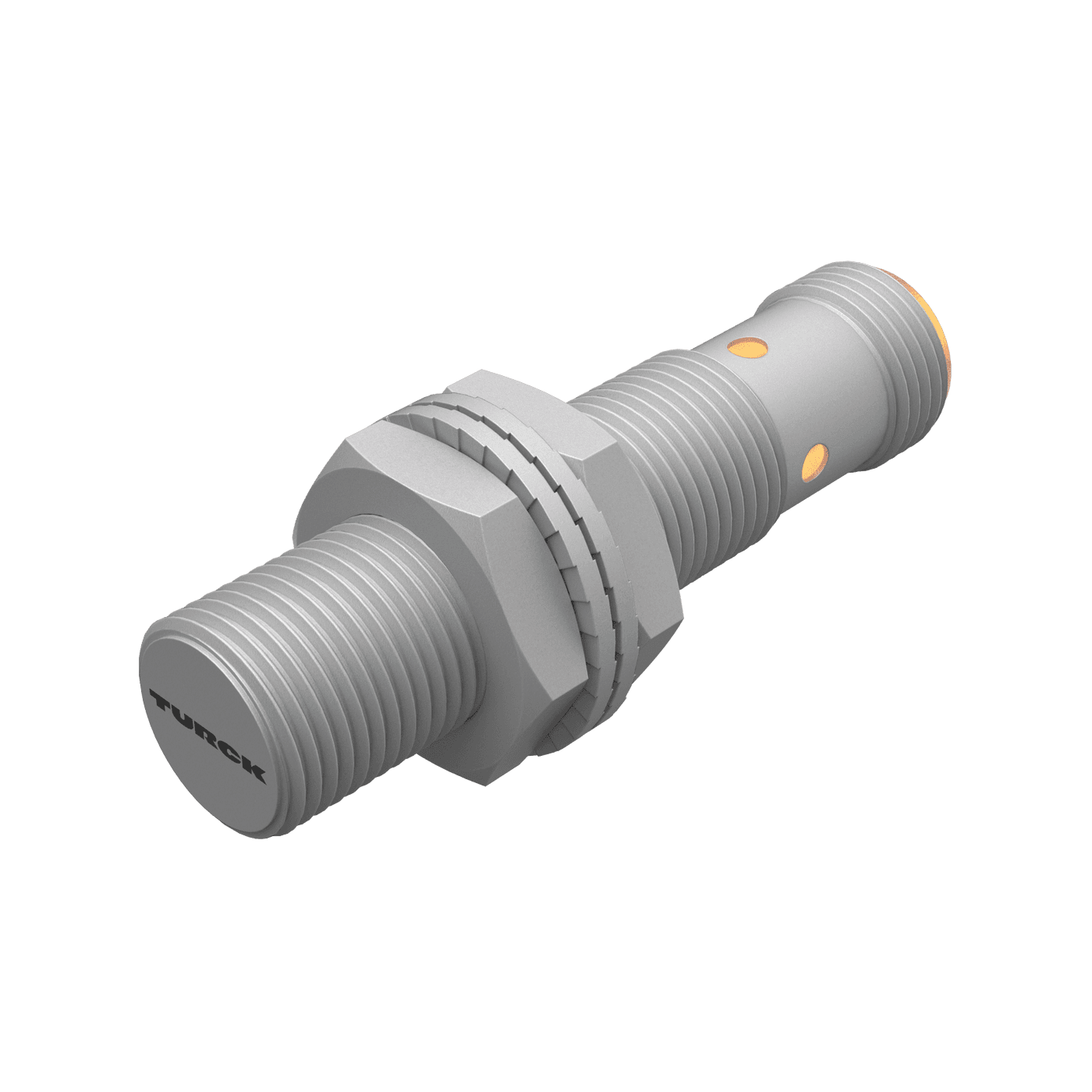

Inductive Sensor

BI4U-MT12-VP6X-H1141

Order ID no. 100004057

Protection class: IP68
Switching element function: Complementary contact
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 4
Construction size: M12 x 1
Output function: Complementary contact, PNP
Base unit: PCE
Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
EAN/UPC code: 4047101492378
Gross weight: 30
Height: 15
Length: 55
Net weight: 30
Dimension unit: MMT
Weight unit: GRM
Volume: 12.375
Volume unit: CMQ
Width: 15

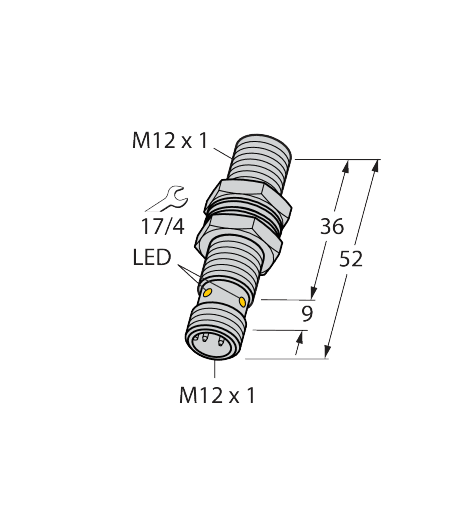

Dimensions: 12 mm x 52 mm
Housing surface: PTFE-coated
Quality active face: LCP
Switching frequency (kHz): 3
