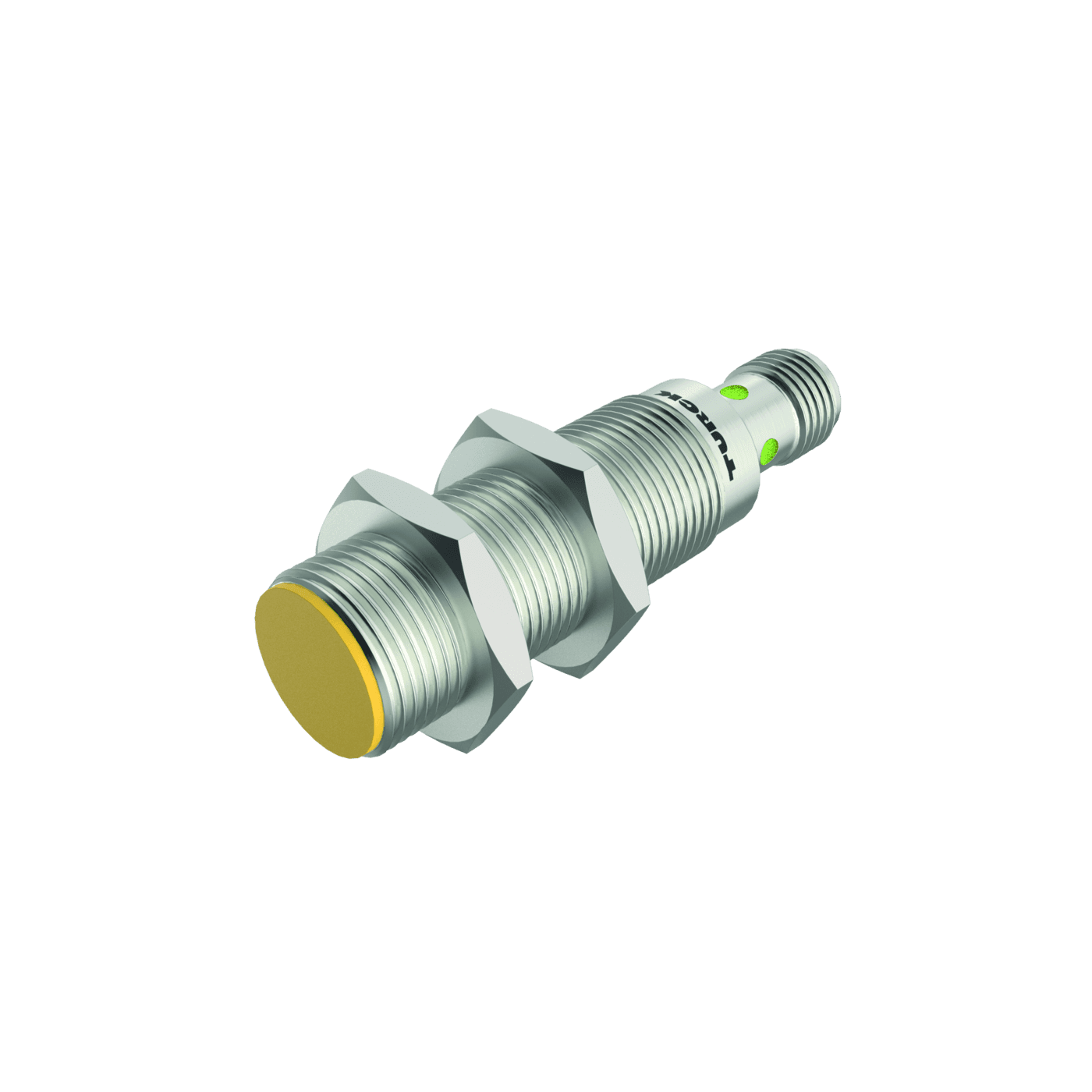

Inductive Safety Sensor
BI8-M18-2APS8X2-H1141
Order ID no. 100016607
In Stock
Price Group
E1
List Price
567,96 zł
Item Total
567,96 zł
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Inductive Sensors
BI8-M18-2APS8X2-H1141
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cascadable
No
Category acc. to ISO 13849-1:2008
2
Coding level/tamper protection
Uncoded
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Threaded barrel
Electrical connection
Connector
Function
Inductive safety switch
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Mounting conditions
Flush
Operating voltage
DC
PL acc. to EN ISO 13849-1
Level d
Protection class
IP67
Quality active face
PA
Rated switching distance (mm)
8
SIL acc. to IEC 61508
2
Switching element function
2 x OSSD, NO contact
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Rated switching distance (mm)
8
