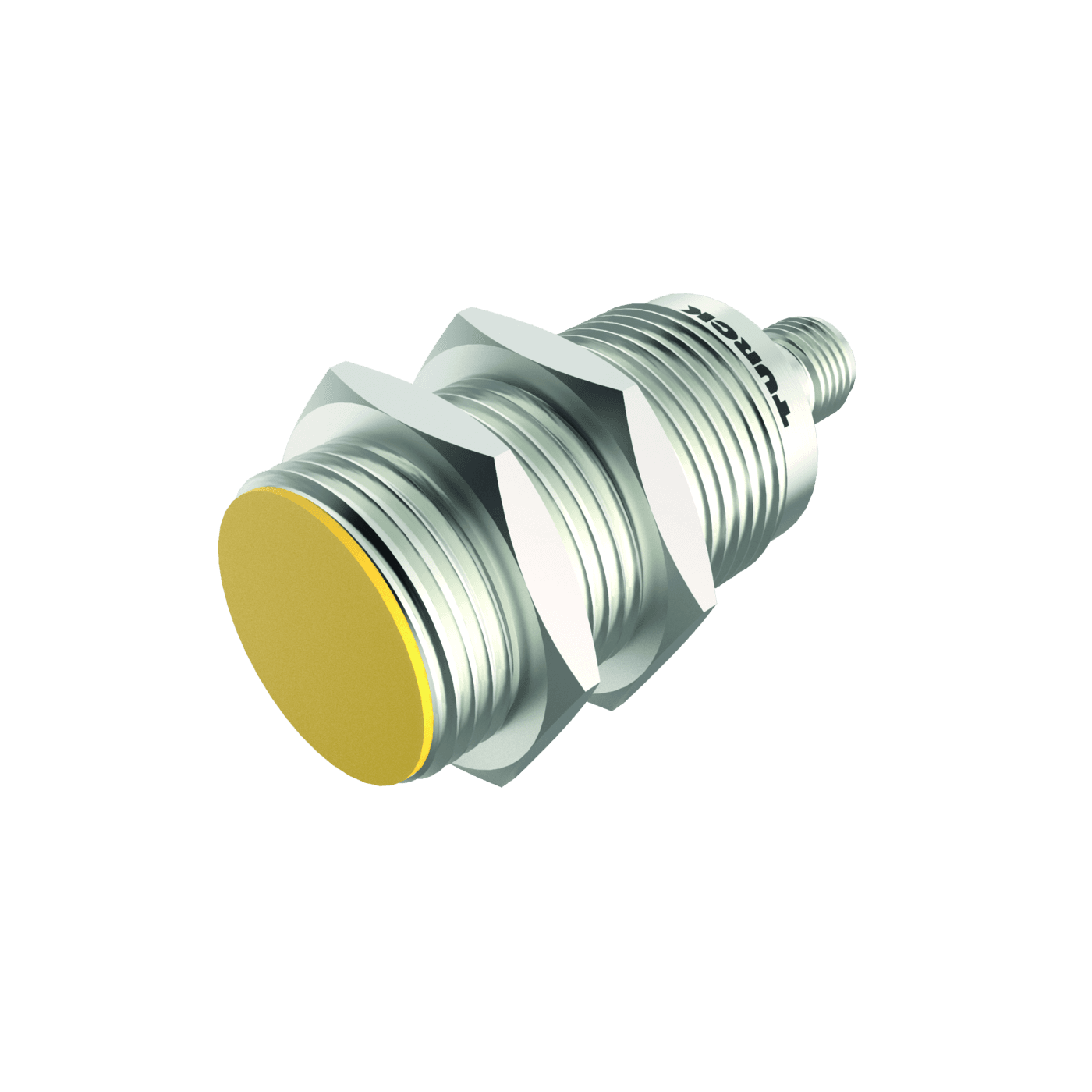

Inductive Safety Sensor
BI12-M30-2APS8X2-H1141
Order ID no. 100016608
In Stock
Price Group
E1
List Price
PLN 628.54
Item Total
PLN 628.54
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cascadable
No
Coding level/tamper protection
Uncoded
Electrical connection
Connector
Connector type
M12 x 1
Design
Threaded barrel
Construction size
⌀ 30 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Mounting conditions
Flush
Function
Inductive safety switch
Operating voltage
DC
Protection class
IP67
Quality active face
PA
Rated switching distance (mm)
12
PL acc. to EN ISO 13849-1
Level d
SIL acc. to IEC 61508
2
Category acc. to ISO 13849-1:2008
2
Switching element function
2 x OSSD, NO contact
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Rated switching distance (mm)
12
