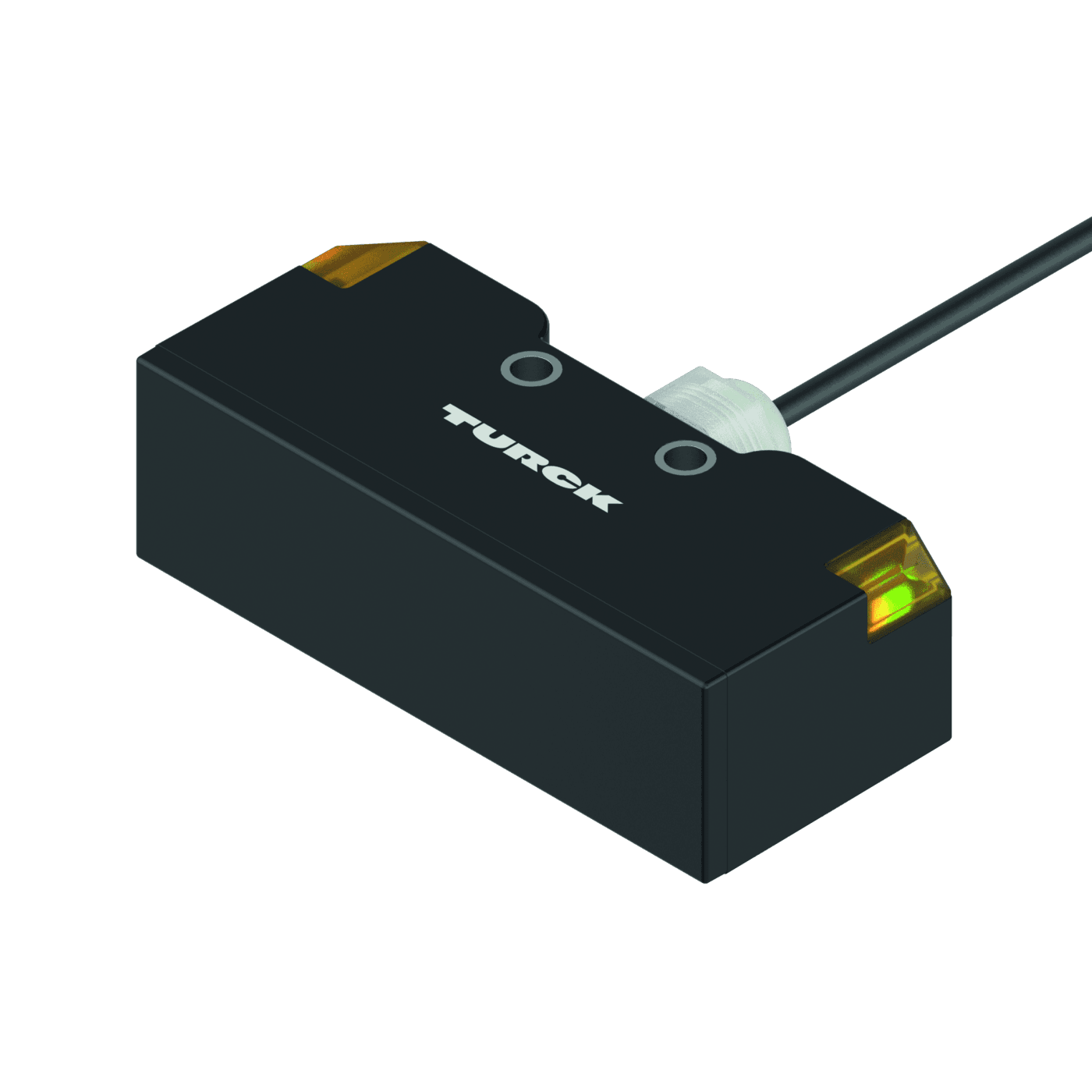

Inductive Sensor For harsh environments
NI30-Q130WD-ADZ30X2
Order ID no. 100027541
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Cable length (m)
2
Design
Rectangular

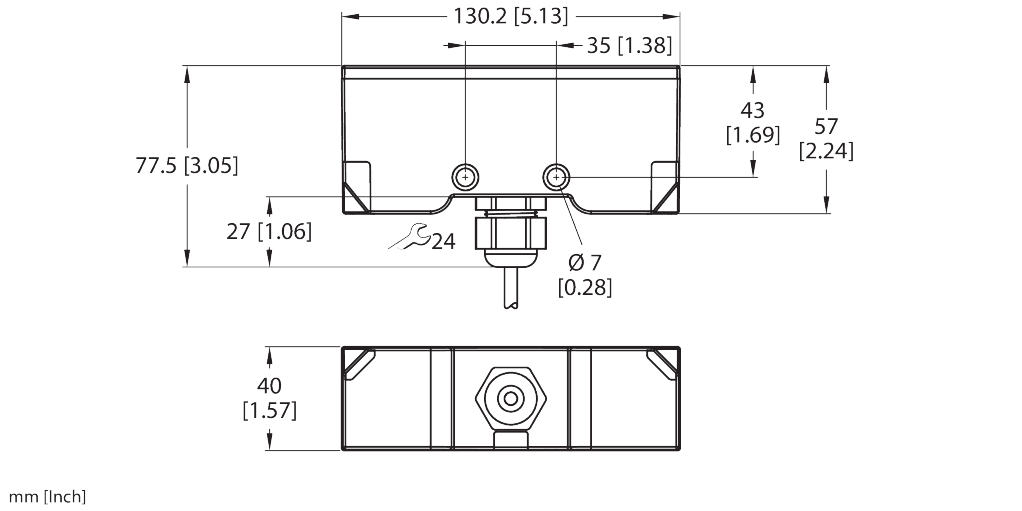

Dimensions
130 mm x 57 mm x 40 mm
Electrical connection
Cable
Housing material
Plastic
Housing quality
PPS-GF30
Housing surface
Black
Mounting conditions
Non-flush
Operating voltage
AC/DC
Protection class
IP68, IP69K
Quality active face
PPS-GF30
Rated switching distance (mm)
30
Special features
Wash down
Switching element function
NO contact
Switching frequency (kHz)
0.02
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Rated switching distance (mm)
30
In Stock
Price Group
E1
List Price
2003,24 zł
