Inductive Sensor

BI1.5-EG08-Y1-H1341

Order ID no. 1003502

Item Total272,62 zł

Quantity

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Connector type: M12 x 1

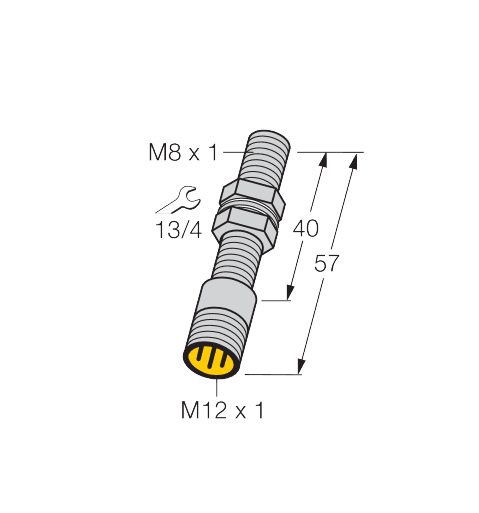

Construction size: ⌀ 8 mm
Design: Threaded barrel
Electrical connection: Connector
Housing material: Stainless steel
Housing quality: 1.4427 SO
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 1.5
Switching frequency (kHz): 5
