Inductive Sensor dual sensor for rotary actuators

NI4-DSU35TC-2Y1X2-0.2-BS9171

Order ID no. 1051013

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable length (m): 0.2
Connector type: Binder
Design: Dual sensor for rotary actuators

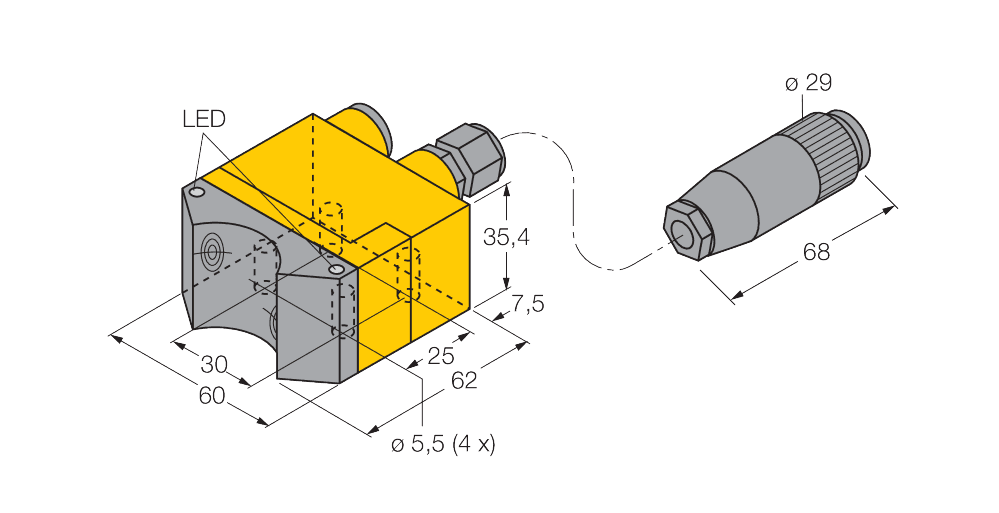

Dimensions: 62 mm x 60 mm x 35,4 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: PP-GF30
Housing surface: Yellow
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP67
Quality active face: PP-GF30
Rated switching distance (mm): 4
Switching frequency (kHz): 0.05
