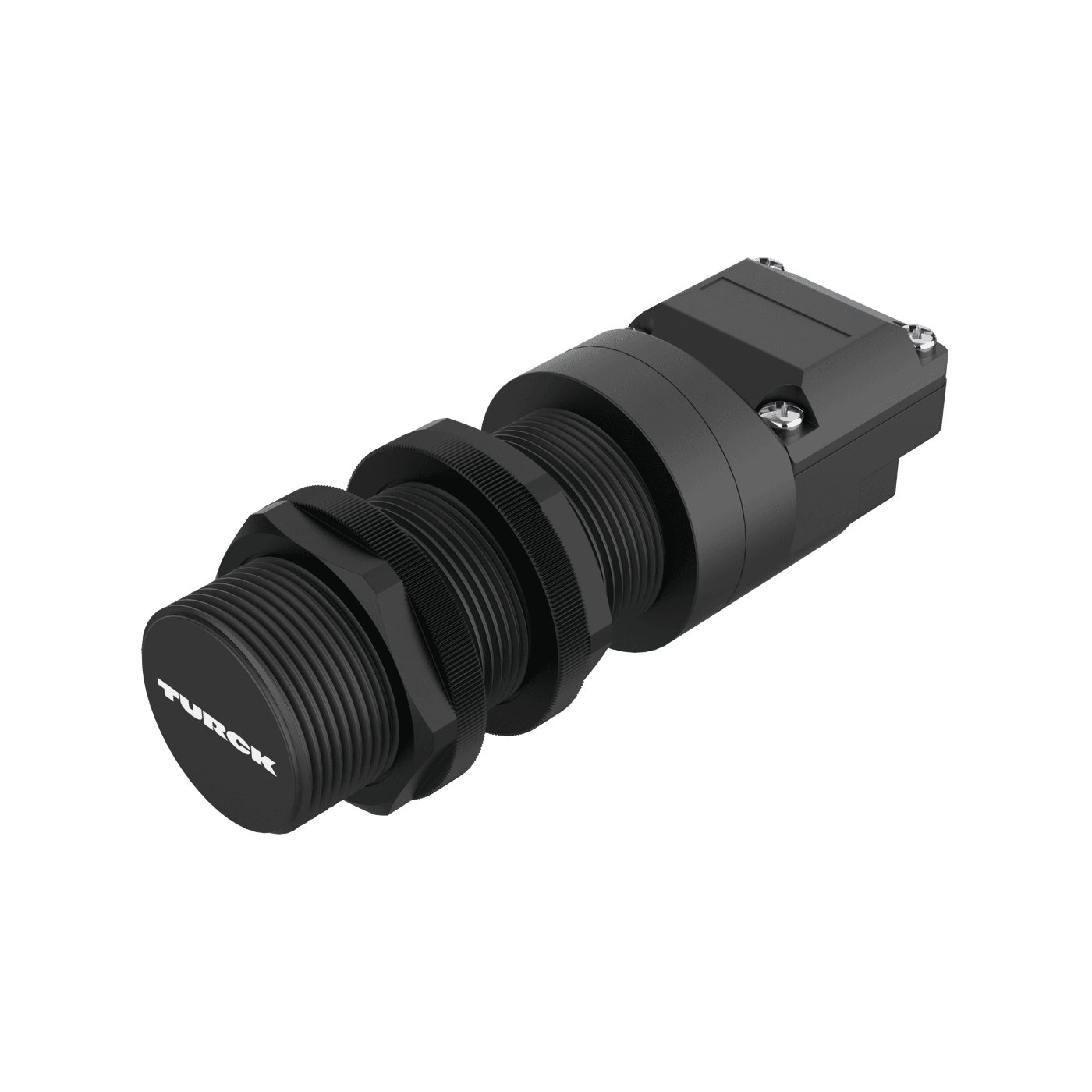

Inductive Sensor
NI15-P30SR-FZ3X2
Order ID no. 13421
In Stock
Price Group
E1
List Price
PLN 796.15
Item Total
PLN 796.15
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
Connection programmable
Design
Threaded barrel
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
AC
Rated switching distance (mm)
15
Construction size
M30 x 1.5
Output function
Connection programmable, 2-wire
Base unit
PCE
EAN/UPC code
4047101066906
Gross weight
129
Height
35
Length
110
Net weight
129
Dimension unit
MMT
Weight unit
GRM
Volume
134.75
Volume unit
CMQ
Width
35

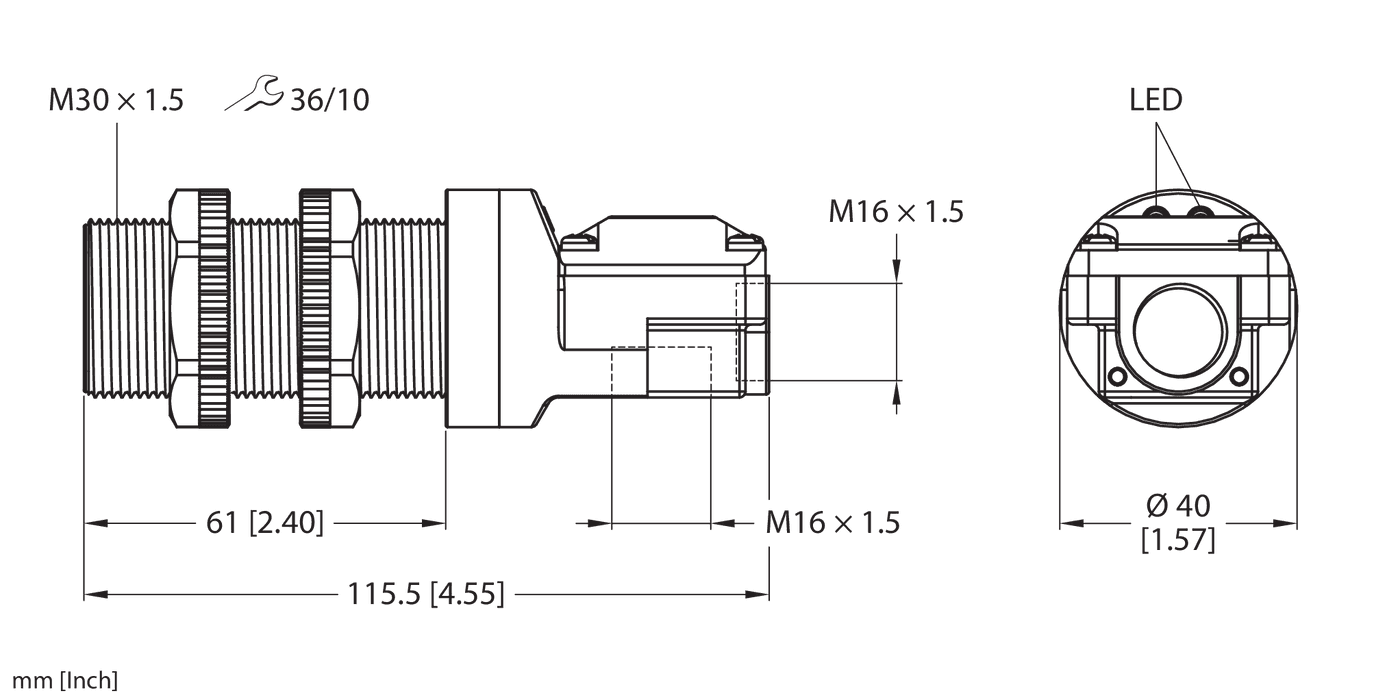

Dimensions
30 mm x 115 mm
Housing surface
Black
Quality active face
ABS
Switching frequency (kHz)
0.02
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Non-flush
Rated switching distance (mm)
15
