Inductive Sensor Ring sensor
BI15R-W30-DAN6X-H1141
Order ID no. 14041
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Connector type
M12 x 1
Design
Ring sensor

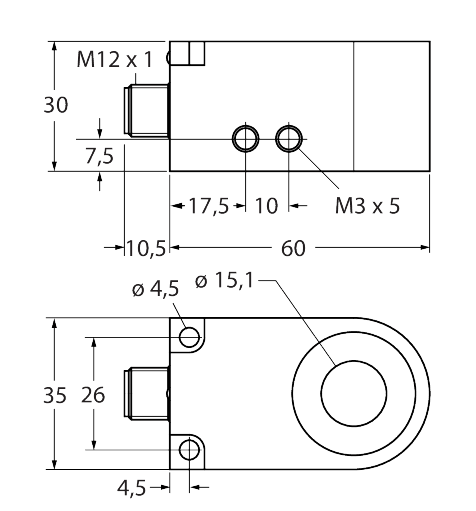

Dimensions
60 mm x 35 mm x 30 mm
Electrical connection
Connector
Housing material
Plastic
Housing quality
PA12-GF30
Inside ring diameter D (mm)
15.1
Operating voltage
DC
Protection class
IP67
Special features
Ring sensor, dynamic output
Switching element function
NO contact
Switching frequency (kHz)
0.008
Key Features
home
Turck-Shop
Sensors
Inductive Sensors
BI15R-W30-DAN6X-H1141
Electrical connection
Connector
In Stock
Price Group
E1
List Price
1052,11 zł
Item Total
1052,11 zł
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
