Inductive Sensor

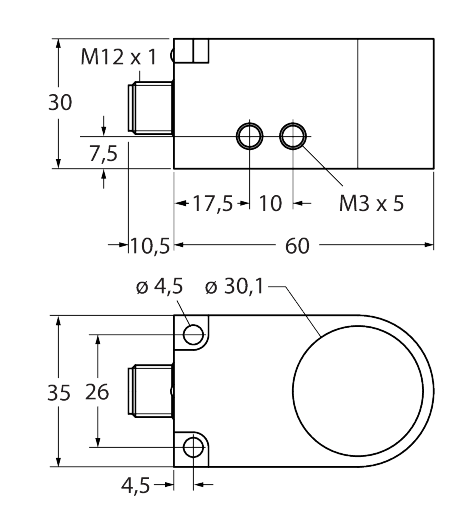

BI30R-W30-DAP6X-H1141
Order ID no. 14045
In Stock
Price Group
E1
List Price
PLN 1,232.84
Item Total
PLN 1,232.84
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Design
Ring sensor
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PA12-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Inside ring diameter D (mm)
30.1
Operating voltage
DC
Construction size
60 x 35 x 30 mm
Output function
NO contact, PNP
Base unit
PCE
Special features
Ring sensor, dynamic output
EAN/UPC code
4047101000122
Gross weight
62
Height
30
Length
100
Net weight
62
Dimension unit
MMT
Weight unit
GRM
Volume
300
Volume unit
CMQ
Width
100
Dimensions
60 mm x 35 mm x 30 mm
Switching frequency (kHz)
0.008
Key Features
Electrical connection
Connector
