Inductive Sensor Ring sensor
BI10R-Q14-AP6X2
Order ID no. 1406100
In Stock
Price Group
E1
List Price
685,08 zł
Item Total
685,08 zł
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Inductive Sensors
BI10R-Q14-AP6X2
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
2
Design
Ring sensor

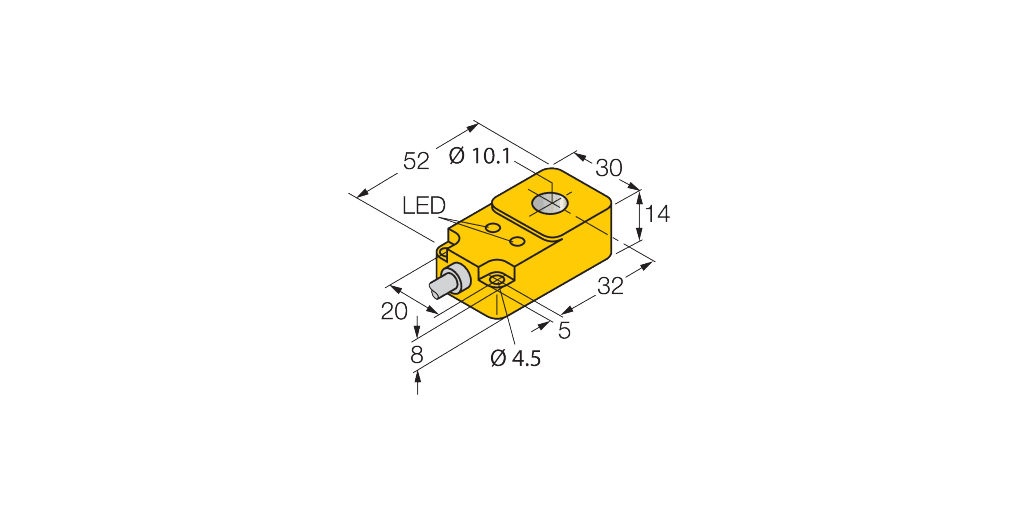

Dimensions
52 mm x 30 mm x 14 mm
Electrical connection
Cable
Housing material
Plastic
Housing quality
PBT-GF30-V0
Inside ring diameter D (mm)
10.1
Operating voltage
DC
Protection class
IP67
Special features
Ring sensor, static output
Switching element function
NO contact
Switching frequency (kHz)
0.008
Key Features
Electrical connection
Cable
