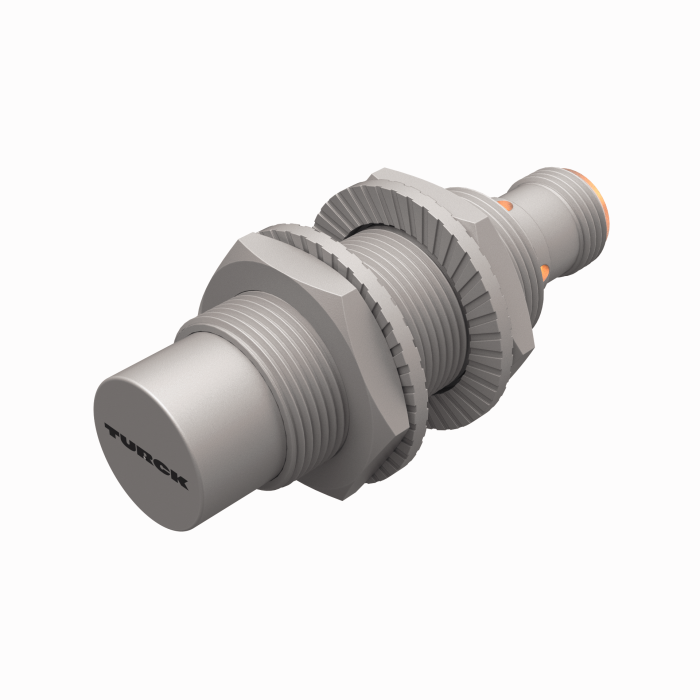

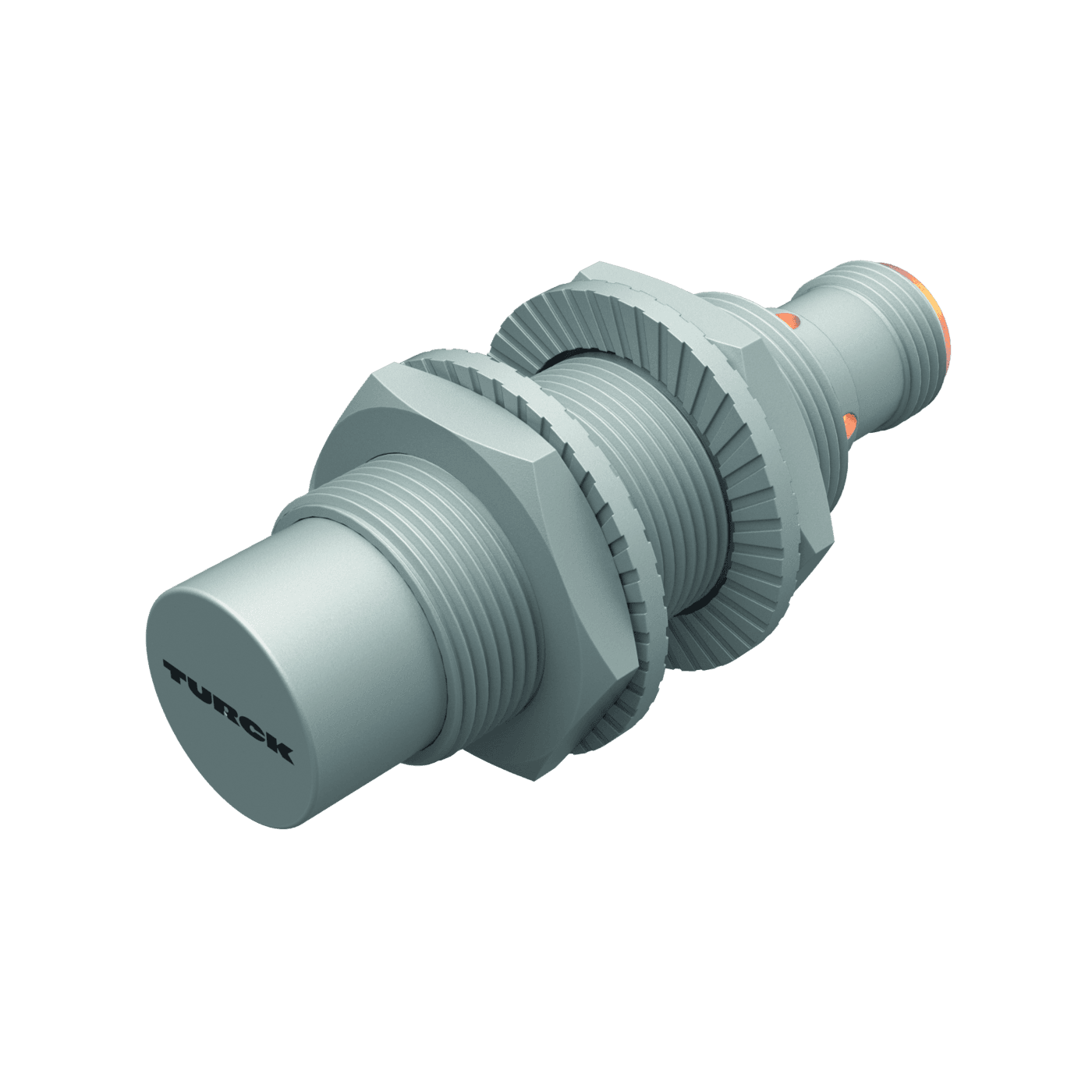

Inductive Sensor

NI12U-MT18M-VP4X-H1141

Order ID no. 1581457

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Connector type: M12 x 1

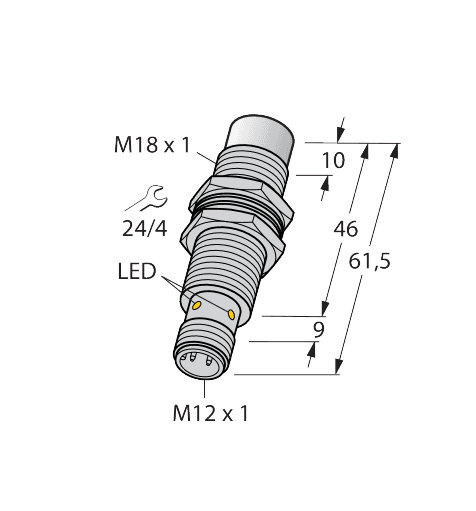

Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Connector
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP68
Quality active face: PBT
Rated switching distance (mm): 12
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox+
Switching element function: Complementary contact
Switching frequency (kHz): 1
