Inductive Sensor

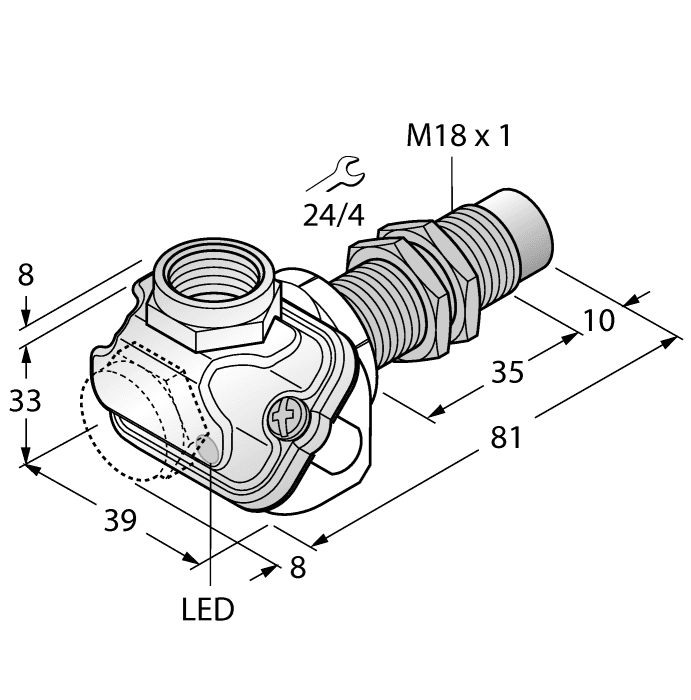

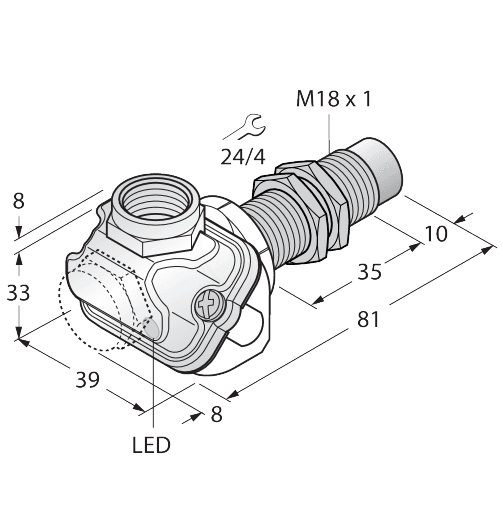

NI15U-EM18WDTC-AP6X

Order ID no. 1634763

Item TotalPLN 526.05

Quantity

Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Electrical connection: Terminal chamber
Connector type: Removable cage clamp terminals
Design: Threaded barrel
Construction size: ⌀ 18 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Non-flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 15
Switching element function: NO contact
Switching frequency (kHz): 1
