Inductive Sensor

BI15U-EM30WD-AN6X

Order ID no. 1634843

Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable color: White
Cable length (m): 2
Electrical connection: Cable
Design: Threaded barrel

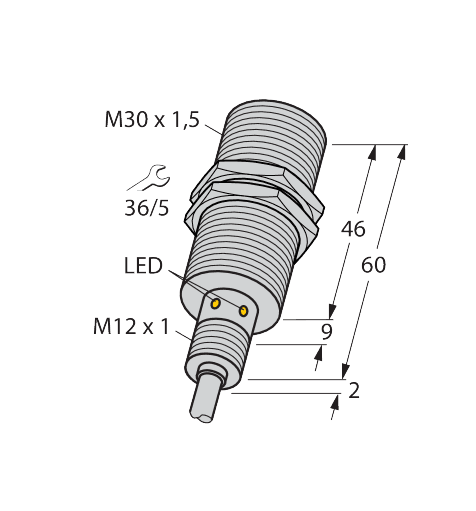

Construction size: ⌀ 30 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 15
Switching element function: NO contact
Switching frequency (kHz): 0.75
