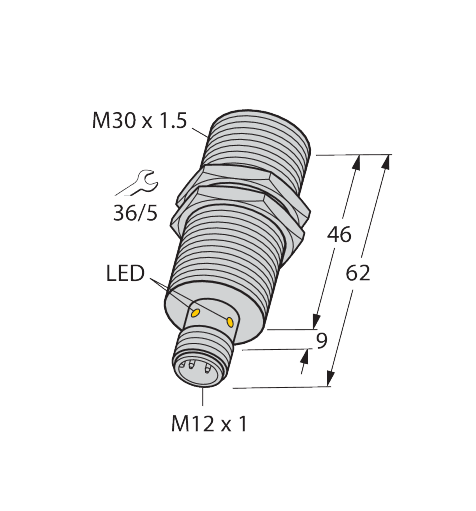

Inductive Sensor

BI15U-EM30WD-AP6X-H1141/3GD

Order ID no. 1634855

Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel
Construction size: ⌀ 30 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 15
Switching element function: NO contact
Switching frequency (kHz): 0.75
