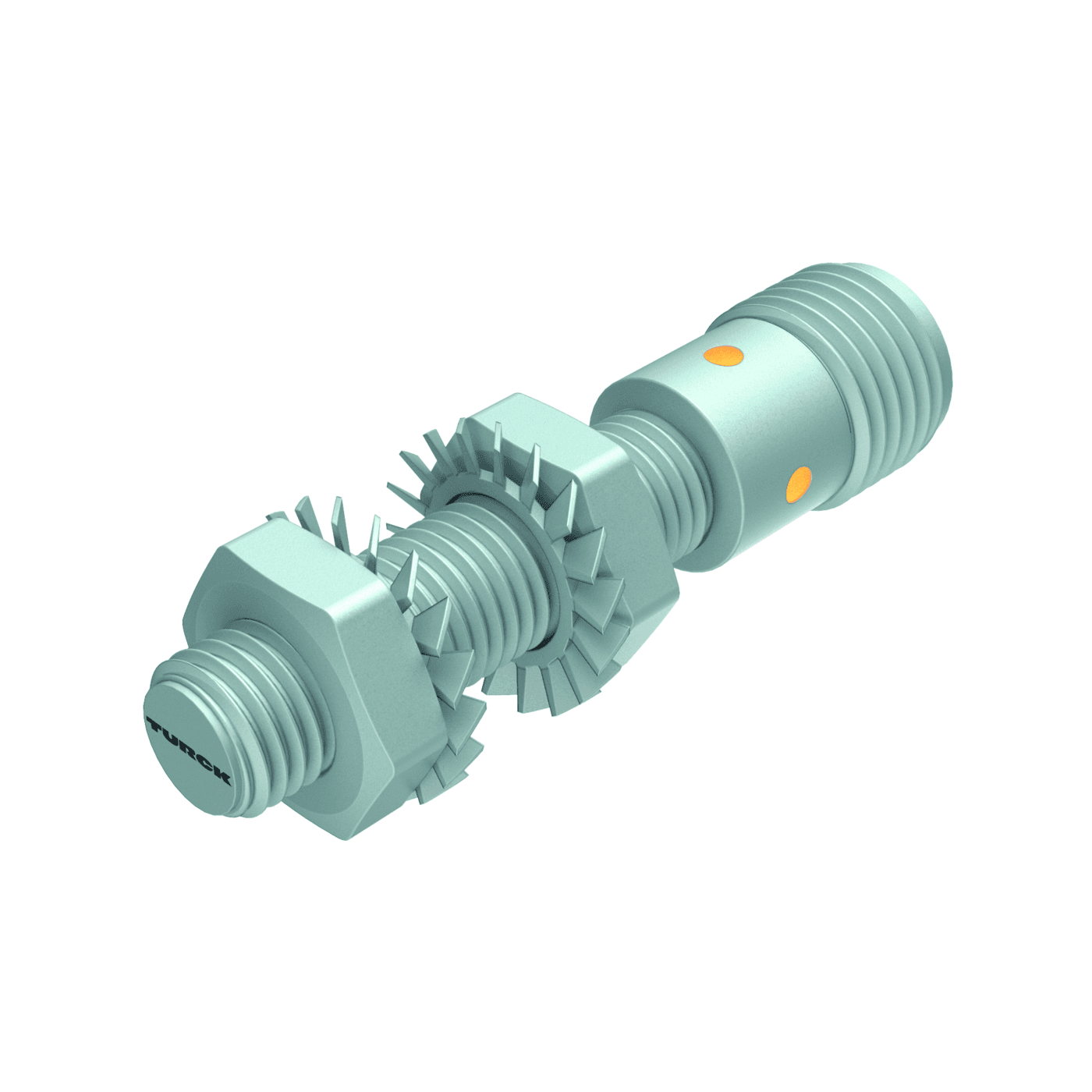

Inductive Sensor

BI3U-EMT08-AP6X-H1341/S1589

Order ID no. 46021560

Item TotalPLN 977.89

Quantity

Special features: uprox3, Resistant to magnetic fields, Factor 1, PTFE-coated
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): 0
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel
Construction size: ⌀ 8 mm
Housing material: Stainless steel
Housing quality: 1.4427 SO
Housing surface: PTFE-coated
Mounting conditions: Flush
Operating voltage: DC
Protection class: IP68
Quality active face: PA12
Rated switching distance (mm): 3
Switching element function: NO contact
Switching frequency (kHz): 1
