LI25P1-QR14-LU4X2-0,3-RS4/S97

LI25P1-QR14-LU4X2-0,3-RS4/S97

Thumbnail for LI25P1-QR14-LU4X2-0,3-RS4/S97

Thumbnail for LI25P1-QR14-LU4X2-0,3-RS4/S97

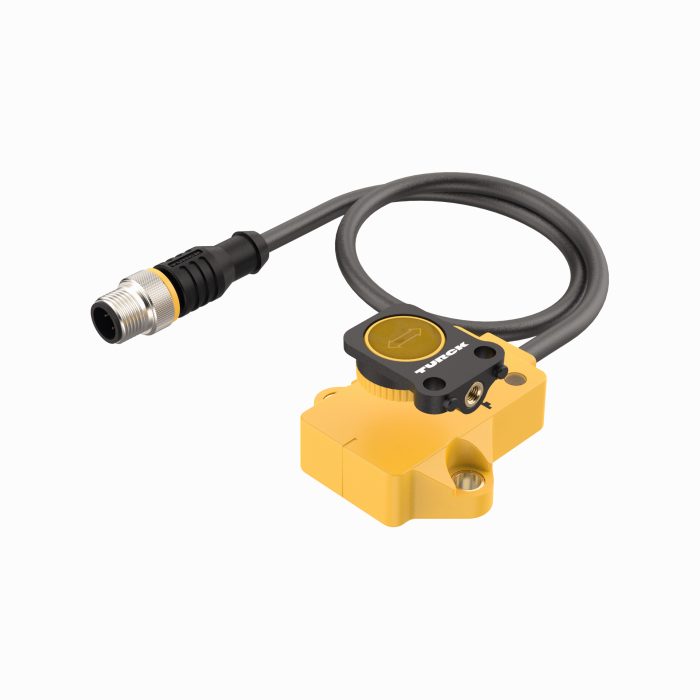

Inductive Linear Position Sensor

LI25P1-QR14-LU4X2-0,3-RS4/S97

Order ID no. 1590754

In Stock
Price Group	F1
List Price	PLN 1,187.91

Item TotalPLN 1,187.91

Quantity

Contact Support

homeHome
Loading...

Protection class: IP68, IP69K
Cable length (m): 0.3
Design: Profile
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PBT-GF30-V0
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Measuring principle: Inductive
Operating voltage: DC
Measuring range (mm): 25
Measuring range: 25…0.0 mm
Output function: , Analog output

Key Features

Electrical connection: Cable with connector
Measuring range (mm): 25
