Magnetic Field Sensor

BIM-IKT-Y1X-H1141

Order ID no. 10562

Item TotalPLN 279.69

Quantity

Protection class: IP67
Design: Rectangular
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: GD-Zn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Construction size: 30 x 14.6 x 28 mm
Output function: , NAMUR
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Base unit: PCE
EAN/UPC code: 4047101145342
Gross weight: 54
Height: 20
Length: 40
Net weight: 54
Dimension unit: MMT
Weight unit: GRM
Volume: 24
Volume unit: CMQ
Width: 30

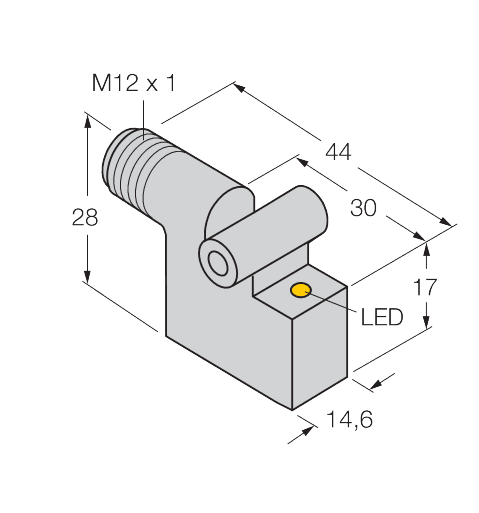

Dimensions: 30 mm x 14,6 mm x 28 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 1

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
