Linear Position Sensor
WIM45-UNTL-LIU5X2-0.3-PSG4M
Order ID no. 1536620
In Stock
Price Group
E1
List Price
PLN 1,424.69
Item Total
PLN 1,424.69
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Magnetic Field Sensors
WIM45-UNTL-LIU5X2-0.3-PSG4M
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
0.3
Electrical connection
Cable with connector
Connector type
M8 x 1
Cylindrical design
T-groove cylinder

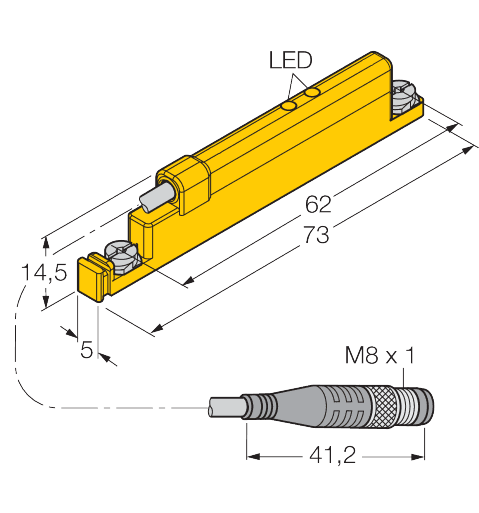

Dimensions
73 mm x 5 mm x 14,5 mm
Housing material
Plastic
Housing quality
PA12-GF30
Measuring range (mm)
45
Operating voltage
DC
Measuring principle
Magnetic
Protection class
IP67
Key Features
Electrical connection
Cable with connector
Cylindrical design
T-groove cylinder
