Magnetic Field Sensor

BIM-IKM-AP6X2-H1141/S34

Order ID no. 46272

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Connector type: M12 x 1
Cylindrical design: Dovetail cylinder, external groove, Profile cylinder, Tie-rod cylinder
Design: Rectangular

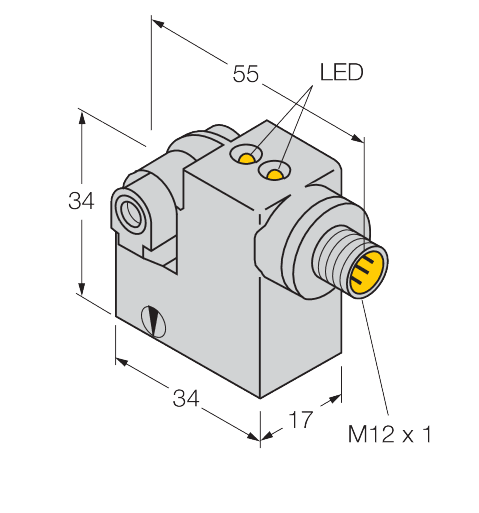

Dimensions: 34 mm x 17 mm x 34 mm
Electrical connection: Connector
Housing material: Metal
Housing quality: GD-Zn
Operating voltage: DC
Protection class: IP67
Quality active face: PA12-GF30
Special features: Resistant to magnetic fields
Switching element function: NO contact
Switching frequency (kHz): 0.02

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
