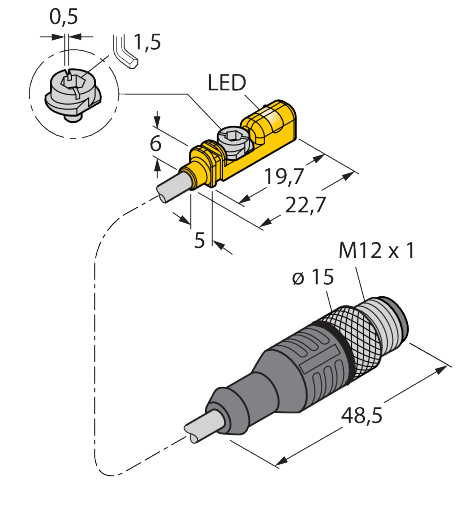

Magnetic Field Sensor

BIM-UNTK-AP7X-0.3-RS4

Order ID no. 4686021

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.3
Connector type: M12 x 1
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular
Dimensions: 19,7 mm x 5 mm x 6 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Protection class: IP68
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 0.3

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
