QS30LDLQ | TURCK - Your Global Automation Partner
Photoelectric sensor Diffuse-Mode Sensor
QS30LDLQ
Order ID no. 3002786
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular with thread

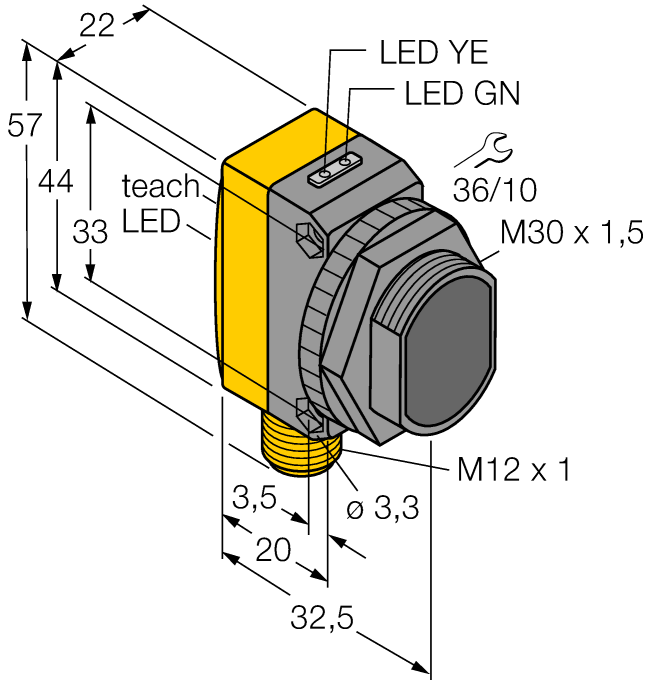

Dimensions
35 mm x 22 mm x 57 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Laser class
2
Light type
Red
Max. range (mm)
800
Operating mode
Diffuse
Protection class
IP67
Setting option
Push Button, Remote Teach
Special features
keep/defer
Switching element function
NO contact
Wavelength (nm)
658
Key Features
Light type
Red
Function
Proximity switch
Max. range (mm)
800
