Measuring Light Screen
EA5R600PIXMODSRLCQ
Order ID no. 3010346
In Stock
Item Total
PLN 7,078.00
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
EA5R600PIXMODSRLCQ
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Communication protocol
Modbus RTU, RS485
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
600

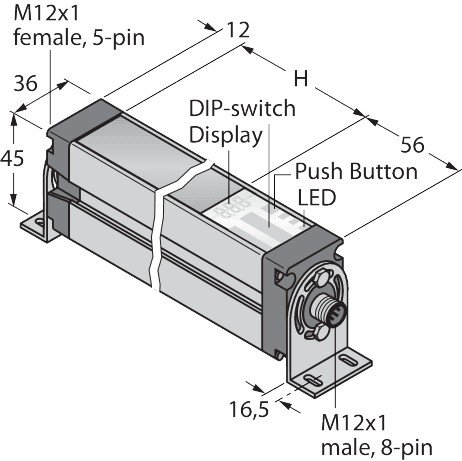

Dimensions
45,2 mm x 36 mm x 678 mm
Housing material
Metal
Housing quality
AL
Housing surface
Anodized
Number of beams
120
Function
Light screen
Operating mode
Receiver
Optical resolution (mm)
5
Protection class
IP65
Max. range (mm)
1500
Switching element function
2 x NO contact
Key Features
Function
Light screen
Max. range (mm)
1500
Price Group
F3
List Price
PLN 7,078.00
