Q26PXLPQ5 | TURCK - Your Global Automation Partner

Photoelectric Sensor

Q26PXLPQ5

Order ID no. 3017131

homeHome
Loading...

Ambient temperature max. (°C): 55
Ambient temperature min. (°C): -10
Cable length (m): 0.15
Connector type: M12 x 1
Design: Rectangular

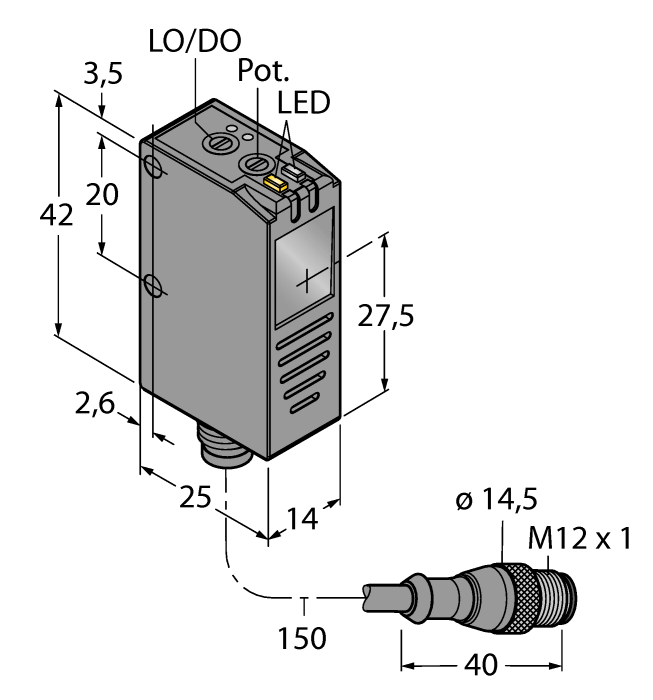

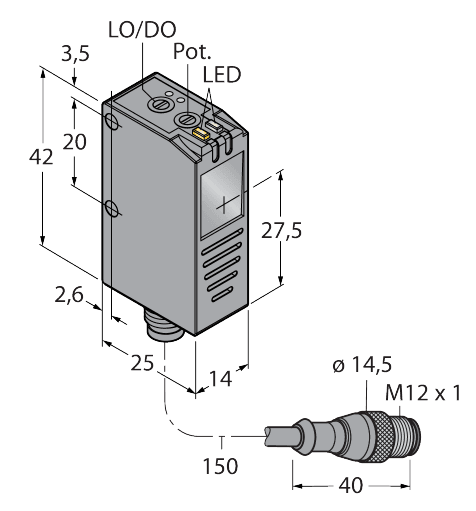

Dimensions: 25 mm x 14 mm x 42 mm
Electrical connection: Cable with connector
Function: Retroreflective Sensor
Housing material: Plastic
Housing quality: Thermoplastic material
Housing surface: Black
Light type: Red
Max. range (mm): 800
Operating mode: Polarized (coaxial)
Protection class: IP67
Setting option: Potentiometer
Special features: Clear object detection
Switching element function: NO contact, dark operation
Switching frequency (kHz): 4
Wavelength (nm): 660

Key Features

Light type: Red
Function: Retroreflective Sensor
Max. range (mm): 800

In Stock
Price Group	D1
List Price	1335,83 zł

Item Total1335,83 zł
