Photoelectric Sensor
SM2A31RPDQDP
Order ID no. 3029565
In Stock
Price Group
F3
List Price
PLN 1,311.69
Item Total
PLN 1,311.69
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
SM2A31RPDQDP
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Connector type
1/2″
Construction size
⌀ 18 mm
Design
Rectangular with thread

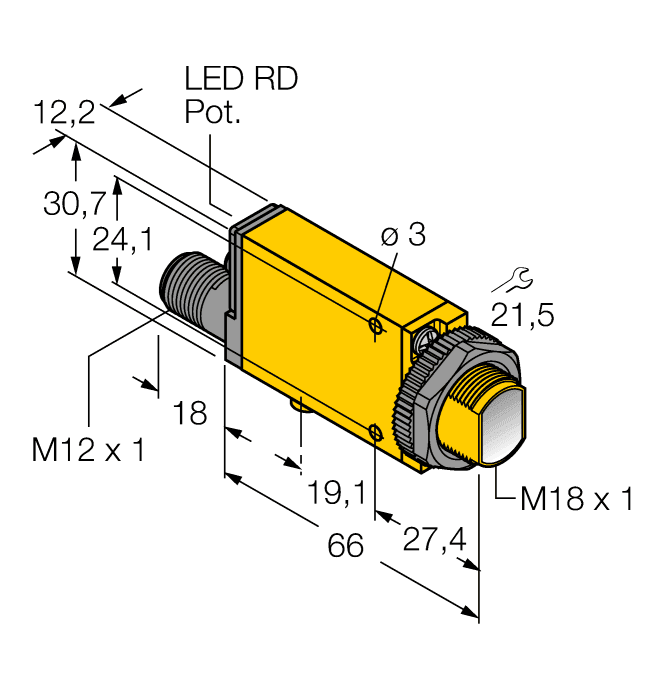

Dimensions
84 mm x 12,2 mm x 30,7 mm
Electrical connection
Cable with connector
Function
Opposed mode sensor
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Max. range (mm)
300
Operating mode
Receiver
Protection class
IP67
Setting option
Potentiometer
Special features
Clear object detection, Encapsulated
Wavelength (nm)
650
Key Features
Function
Opposed mode sensor
Max. range (mm)
300
