Photoelectric Sensor
MIAD9CV2
Order ID no. 3037712
In Stock
Price Group
F3
List Price
PLN 1,230.82
Item Total
PLN 1,230.82
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
MIAD9CV2
Technical Data
Downloads
Special features
Encapsulated
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular with thread
Construction size
⌀ 18 mm

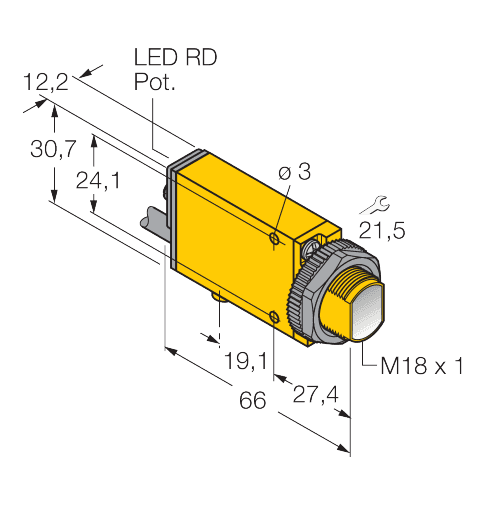

Dimensions
66 mm x 12,3 mm x 30,7 mm
Focal distance (mm)
43
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
Red
Function
Proximity switch
Operating mode
Convergent
Protection class
IP67
Max. range (mm)
43
Setting option
Potentiometer
Switching element function
Light operation
Wavelength (nm)
650
Key Features
Light type
Red
Function
Proximity switch
Max. range (mm)
43
