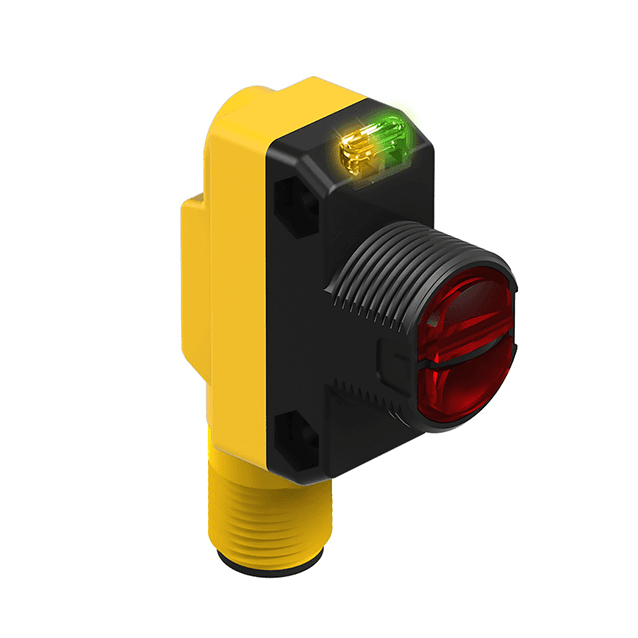

Photoelectric sensor Convergent mode sensor
QS18VP6CV45Q8
Order ID no. 3066458
In Stock
Price Group
F3
List Price
536,66 zł
Item Total
536,66 zł
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18VP6CV45Q8
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Rectangular with thread

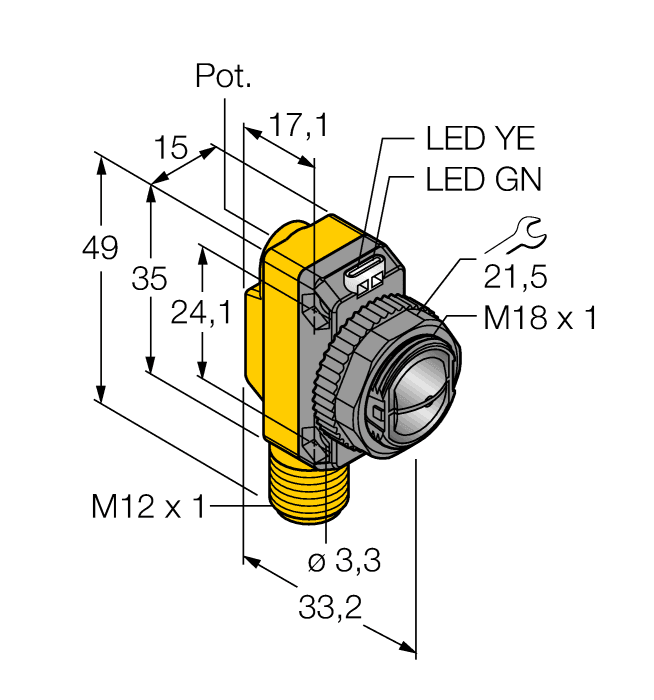

Dimensions
33,2 mm x 15 mm x 35 mm
Electrical connection
Connector
Focal distance (mm)
43
Function
Proximity switch
Housing material
Plastic
Housing quality
ABS
Light type
Red
Max. range (mm)
43
Operating mode
Convergent
Protection class
IP67
Setting option
Potentiometer
Switching element function
NO/NC
Wavelength (nm)
630
Key Features
Light type
Red
Function
Proximity switch
Max. range (mm)
43
