Photoelectric Sensor
QS30LDQ-71066
Order ID no. 3071066
In Stock
Price Group
F3
List Price
PLN 1,327.25
Item Total
PLN 1,327.25
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
QS30LDQ-71066
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular with thread

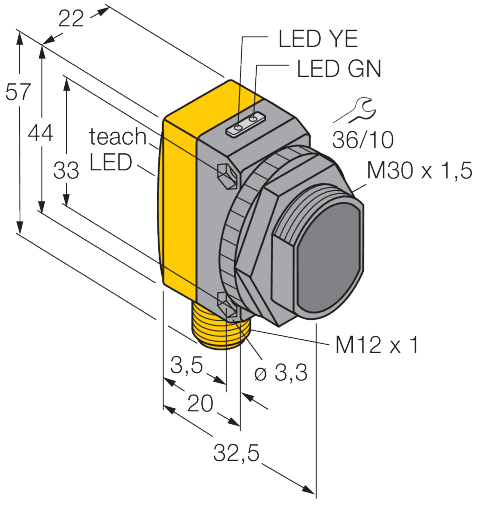

Dimensions
35 mm x 22 mm x 57 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Laser class
 1
Light type
Red
Max. range (mm)
400
Operating mode
Diffuse
Protection class
IP67
Setting option
Push Button
Special features
keep/defer
Switching element function
NO contact
Wavelength (nm)
650
Key Features
Light type
Red
Function
Proximity switch
Max. range (mm)
400
