Photoelectric Sensor

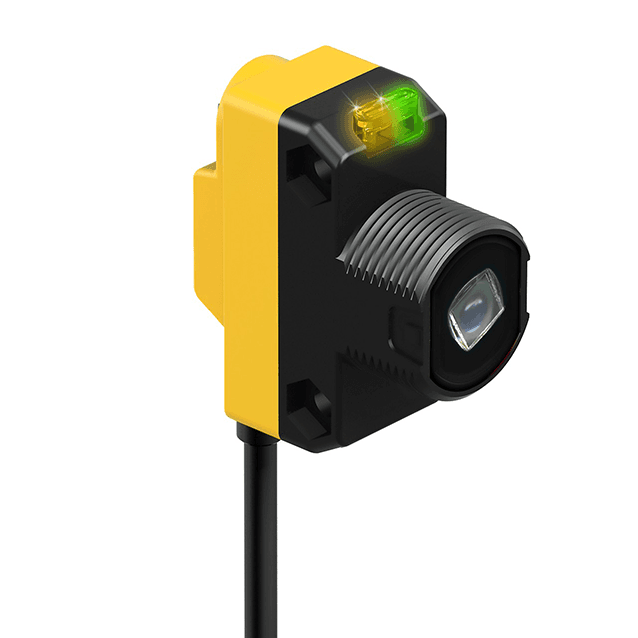

QS186LE12Q5
Order ID no. 3071332
In Stock
Price Group
F3
List Price
PLN 667.92
Item Total
PLN 667.92
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
QS186LE12Q5
Technical Data
Downloads
Special features
Laser
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular with thread
Construction size
⌀ 18 mm

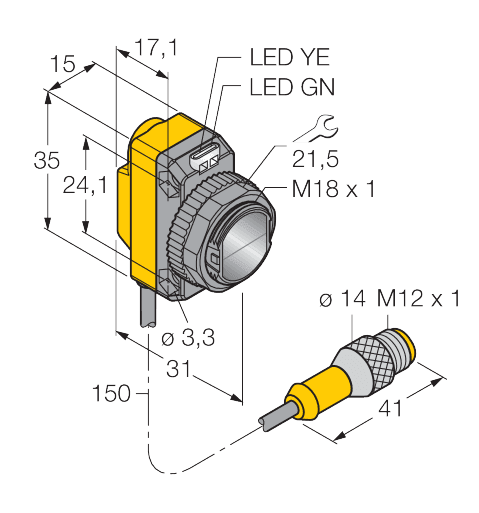

Dimensions
31 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
Red
Function
Opposed mode sensor
Operating mode
Laser Emitter
Protection class
IP67
Max. range (mm)
15000
Wavelength (nm)
650
Key Features
Light type
Red
Function
Opposed mode sensor
Max. range (mm)
15000
