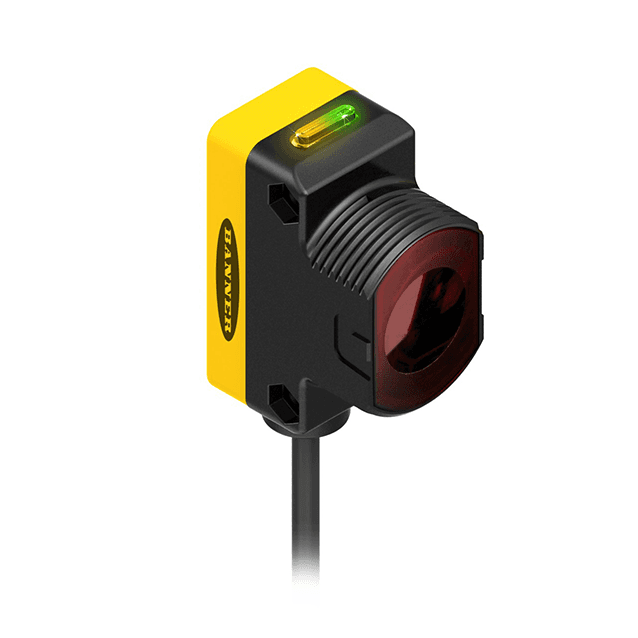

Photoelectric Sensor
QS30RRXQPMA
Order ID no. 3072063
In Stock
Price Group
F3
List Price
PLN 1,251.39
Item Total
PLN 1,251.39
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular with thread

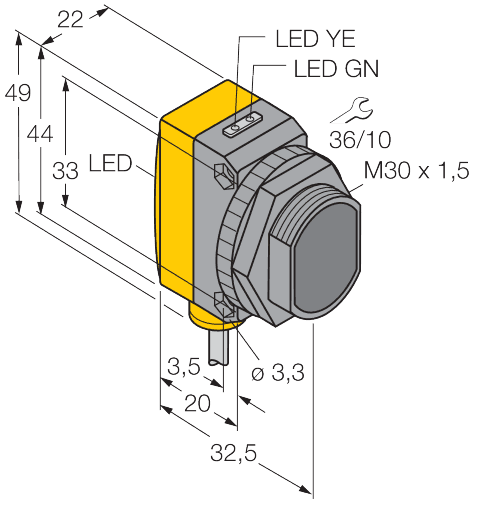

Dimensions
35 mm x 22 mm x 49 mm
Electrical connection
Cable with connector
Function
Opposed mode sensor
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Max. range (mm)
213000
Operating mode
Receiver
Protection class
IP67
Switching element function
NO contact, dark operation
Wavelength (nm)
875
Key Features
Function
Opposed mode sensor
Max. range (mm)
213000
