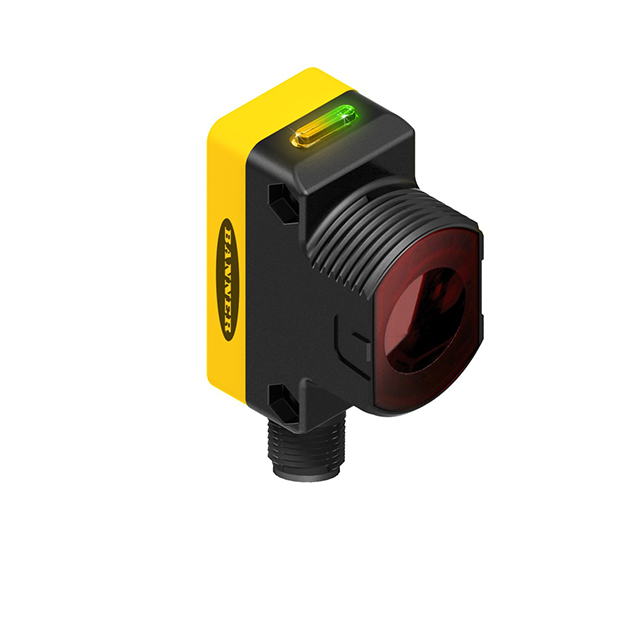

Photoelectric Sensor
QS30LVQ
Order ID no. 3073094
In Stock
Price Group
F3
List Price
645,70 zł
Item Total
645,70 zł
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
QS30LVQ
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular with thread

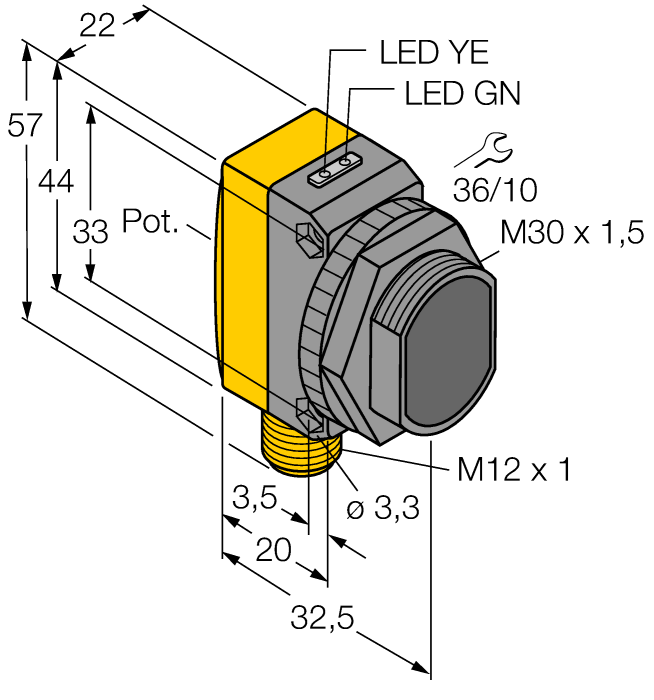

Dimensions
35 mm x 22 mm x 57 mm
Electrical connection
Connector
Function
Retroreflective Sensor
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
Red
Max. range (mm)
12000
Operating mode
Unpolarized
Protection class
IP67
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
630
Key Features
Light type
Red
Function
Retroreflective Sensor
Max. range (mm)
12000
