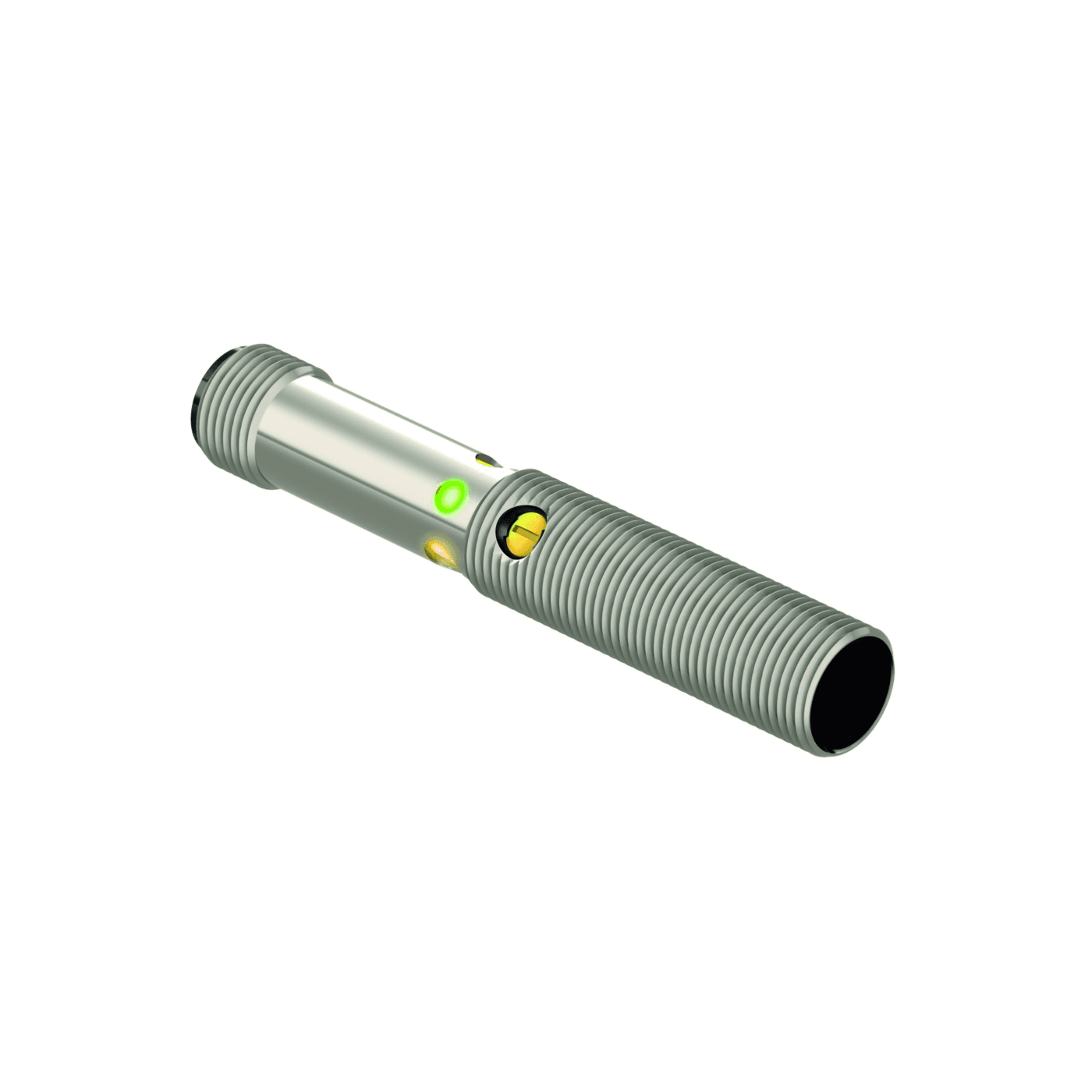

Photoelectric Sensor
M12PLVQ8
Order ID no. 3077187
In Stock
Price Group
F3
List Price
PLN 653.78
Item Total
PLN 653.78
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Special features
Encapsulated, Wash down
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
M12 x 1
Design
Tube
Construction size
⌀ 12 mm

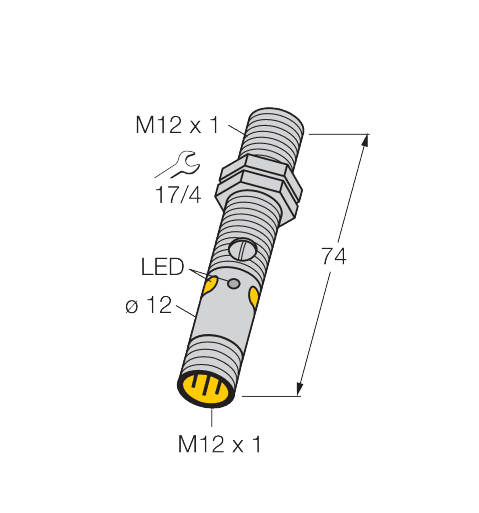

Dimensions
74 mm
Housing material
Metal
Housing quality
Nickel-plated brass
Housing surface
Nickel Plated
Light type
Red
Function
Retroreflective Sensor
Operating mode
Unpolarized
Protection class
IP67, IP68
Max. range (mm)
2500
Setting option
Potentiometer
Switching element function
Complementary contact
Wavelength (nm)
660
Key Features
Light type
Red
Function
Retroreflective Sensor
Max. range (mm)
2500
