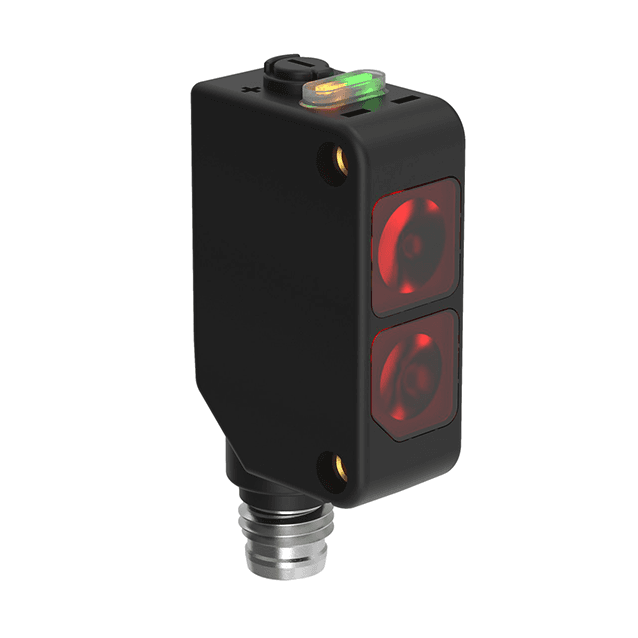

Photoelectric sensor Diffuse-Mode Sensor
Q20PDXLQ7
Order ID no. 3078152
In Stock
Price Group
F3
List Price
555,34 zł
Item Total
555,34 zł
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
Q20PDXLQ7
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Connector type
M8 x 1
Design
Rectangular

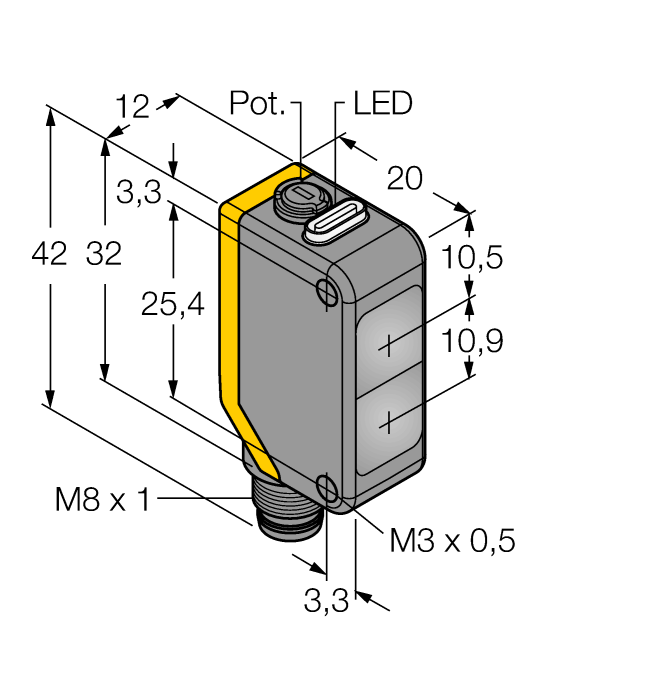

Dimensions
20 mm x 12 mm x 42 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
IR
Max. range (mm)
1500
Operating mode
Diffuse
Protection class
IP67
Setting option
Potentiometer
Switching element function
Complementary contact
Wavelength (nm)
850
Key Features
Light type
IR
Function
Proximity switch
Max. range (mm)
1500
