Q20PDQPMA | TURCK - Your Global Automation Partner

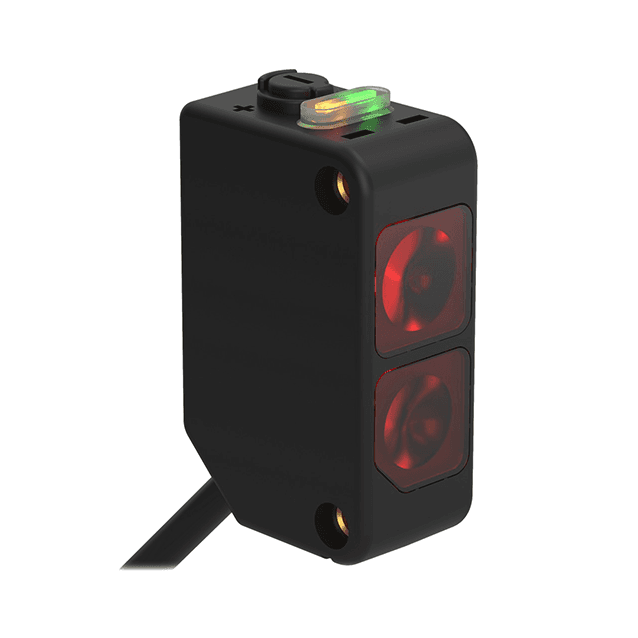

Photoelectric sensor Diffuse-Mode Sensor
Q20PDQPMA
Order ID no. 3078169
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Connector type
M12 x 1
Design
Rectangular

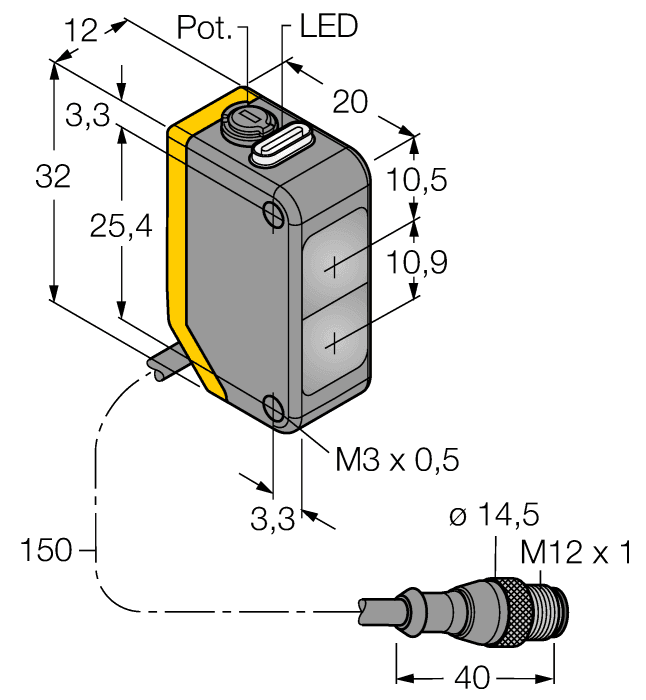

Dimensions
20 mm x 12 mm x 32 mm
Electrical connection
Cable with connector
Function
Proximity switch
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Max. range (mm)
250
Operating mode
Diffuse
Protection class
IP67
Setting option
Potentiometer
Switching element function
Complementary contact
Wavelength (nm)
655
Key Features
Light type
Red
Function
Proximity switch
Max. range (mm)
250
In Stock
Price Group
F3
List Price
729,51 zł
